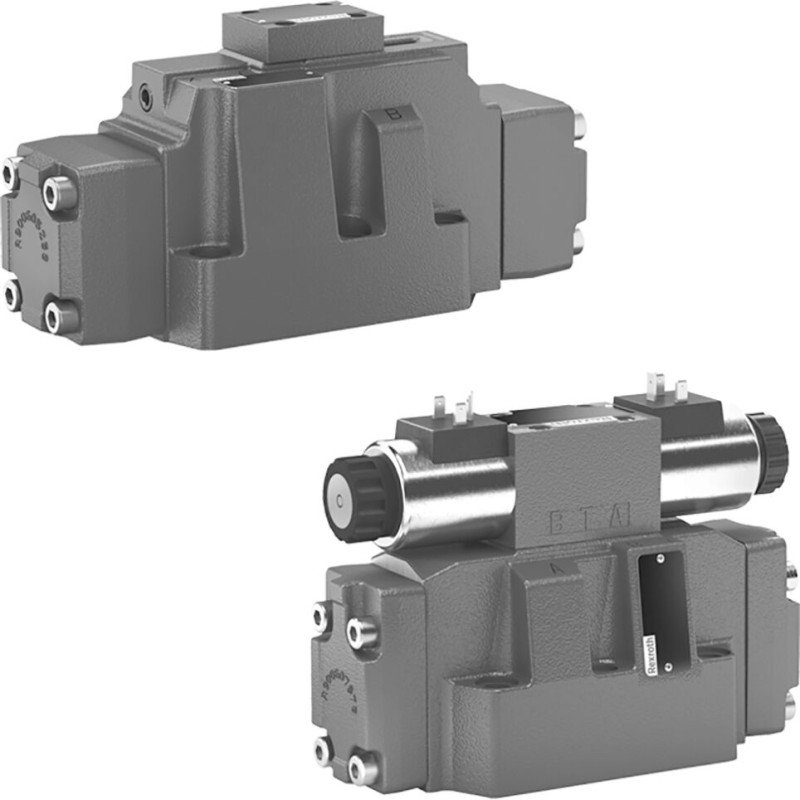

R900923683
H-4WEH10EA4X/6EG24N9K4

R900923683
  • Availability: on request
  • Weight: 6.74 KG
  • Part number: R900923683
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R900923683
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 6.74 kg
Operating pressure, max. 350 bar
Max. flow 160 l/min
Other properties
Connection diagram ISO 4401-05-05-0-05
ECLASS_13_Classification 51-44-01-02
Product family H-4W.H..
Spool symbol Symbol E
Type of connection Subplate mounting
Size 10
Type of actuation with solenoid actuation
Number of ports 4
Number of switching positions 3
Supply voltage 24 VDC
Electrical connector Connector, 3-pole (2 + PE)
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Seals NBR
Description

Industrial hydraulic valve in a high performance range. Reliable control of the oil flow direction according to hydraulic symbol. High accuracy thanks to internal piston position feedback

Features
  • Directional on/off valve
  • Pilot-operated
  • External pilot oil supply, external pilot oil return
  • without position switch
  • With concealed auxiliary actuation
Manual (2)
PDF R900923683 (EN)
PDF 21ce2475-6107-4166-afe3-6d9295236a8e_original (EN)
Pos Name Material Number
63 DIRECTIONAL SPOOL VALVE
4WE6JA6X/EG24N9K4
 R900561290
998 SEAL KIT
WE 6.6X/E
 R900357573
999 SEAL KIT
WH 10.2X/3X/4X/
 R900306343
