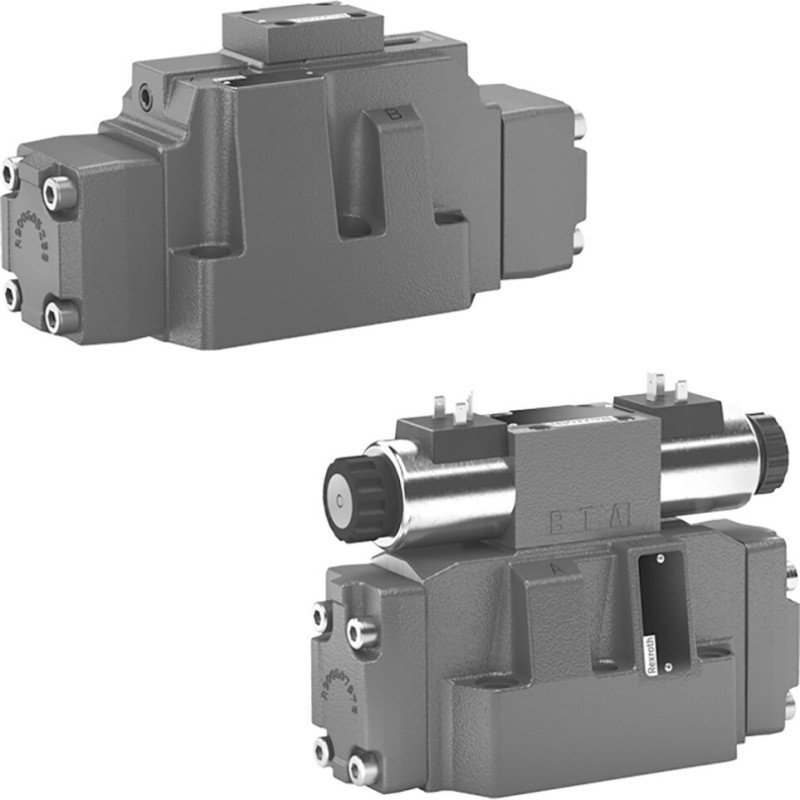

R901074786
H-3WEH25A7-6X/6EG24N9K4

R901074786
  • Availability: on request
  • Weight: 17.56 KG
  • Part number: R901074786
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901074786
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 17.56 kg
Operating pressure, max. 350 bar
Other properties
Connection diagram ISO 4401-08-08-0-05
ECLASS_13_Classification 51-44-01-02
Product family H-4W.H..
Spool symbol Symbol A7
Type of connection Subplate mounting
Size 25
Type of actuation with solenoid actuation
Number of ports 3
Number of switching positions 2
Supply voltage 24 VDC
Electrical connector Connector, 3-pole (2 + PE)
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Seals NBR
Features
  • Directional on/off valve
  • Pilot-operated
  • External pilot oil supply, external pilot oil return
  • without position switch
  • With concealed auxiliary actuation
Manual (2)
PDF R901074786 (EN)
PDF 21ce2475-6107-4166-afe3-6d9295236a8e_original (EN)
Pos Name Material Number
63 DIRECTIONAL SPOOL VALVE
4WE6D6X/EG24N9K4
 R900561274
998 SEAL KIT
WE 6.6X/E
 R900357573
999 SEAL KIT
WH 25.5X/6X/
 R900309827
