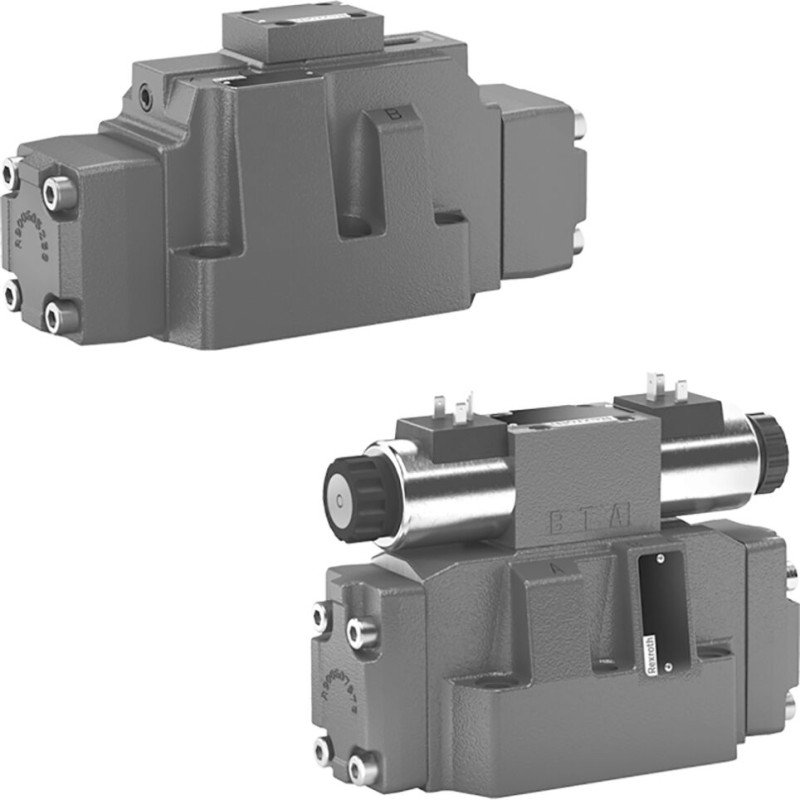

R901584825
H-3WEH25A7-6X/6EG205N9K4

R901584825
  • Availability: on request
  • Weight: 17.18 KG
  • Part number: R901584825
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901584825
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 17.182 kg
Operating pressure, max. 350 bar
Other properties
Connection diagram ISO 4401-08-08-0-05
ECLASS_13_Classification 51-44-01-02
Product family H-4W.H..
Spool symbol Symbol A7
Type of connection Subplate mounting
Size 25
Number of ports 3
Number of switching positions 2
Supply voltage 205 VDC
Electrical connector Connector, 3-pole (2 + PE)
Conformity description UKCA – Low-Voltage Directive SI2016/1091,CE – Low-Voltage Directive 2014/35/EU
Conformity UKCA,CE
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Seals NBR
Features
  • Directional on/off valve
  • Pilot-operated
  • External pilot oil supply, external pilot oil return
  • without position switch
  • With concealed auxiliary actuation
Manual (2)
PDF R901584825 (EN)
PDF 21ce2475-6107-4166-afe3-6d9295236a8e_original (EN)
Pos Name Material Number
63 DIRECTIONAL SPOOL VALVE
4WE6D6X/EG205N9K4
 R900903081
998 SEAL KIT
WE 6.6X/E
 R900357573
999 SEAL KIT
WH 25.5X/6X/
 R900309827
