Physical size and weight
| Net weight |
10
kg |
| Operating pressure, max. |
315
bar |
| Max. flow |
300
l/min |
Other properties
| Connection diagram |
ISO 5781
|
| ECLASS_13_Classification |
51-45-02-02
|
| Product family |
DRE(M)€
|
| Spool symbol |
B → A
|
| Type of connection |
Subplate mounting
|
| Size |
32
|
| Type of actuation |
Electrical with on-board electronics
|
| Number of ports |
3
|
| Number of switching positions |
2
|
| Supply voltage |
24 VDC
|
| Electrical connector |
Connector, 7-pole (6 + PE)
|
| Electrical connection description |
Connector 7-pole (6 + PE) according to EN 175201-804
|
| Connectivity |
Analog, command value 4…20 mA
|
| Conformity description |
UKCA – Electromagnetic compatibility (EMC) SI2016/1091,CE – Electromagnetic compatibility (EMC) directive 2014/30/EU
|
| Conformity |
UKCA,CE
|
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD,HFC
|
| Seals |
NBR
|
Description

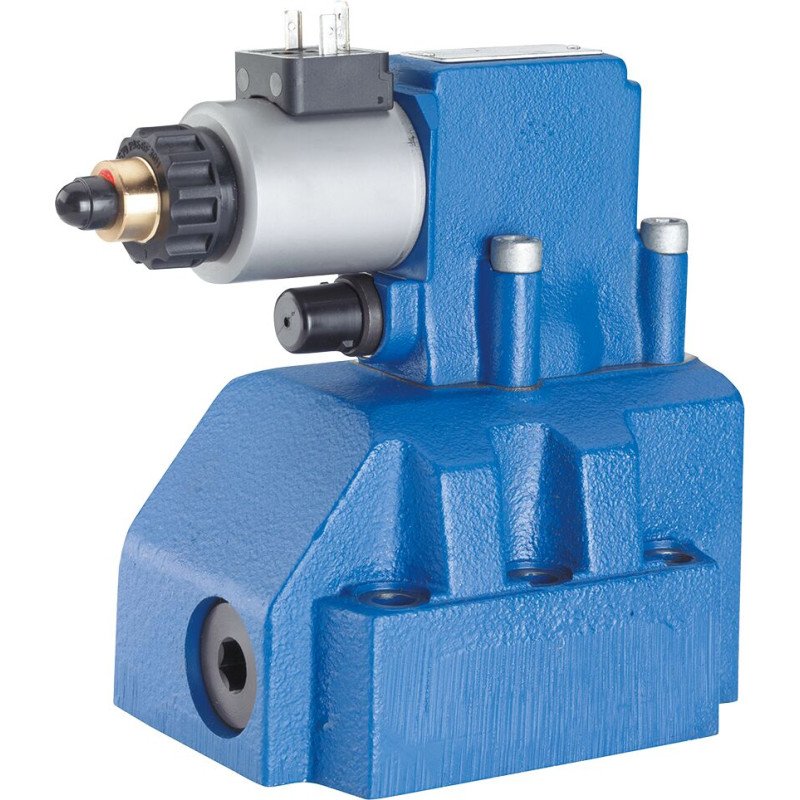

Industrial hydraulic valve in a high performance range. Reliable reduction of the pressure to the command value signal.
DataSheet (1)
proportional pressure reducing valve, pilot operated
