Physical size and weight
| Net weight |
1577.24
g |
| Length |
135
mm |
| Width |
45
mm |
| Height |
75
mm |
| Operating pressure, max. |
315
bar |
| Max. flow |
1.5
l/min |
Other properties
| Connection diagram |
ISO 4401-03-02-0-05
|
| ECLASS_13_Classification |
51-45-02-01
|
| Product family |
DBETX
|
| Spool symbol |
P → T
|
| Type of connection |
Subplate mounting
|
| Size |
6
|
| Type of actuation |
Electrical with external electronics
|
| Number of ports |
2
|
| Number of switching positions |
2
|
| Supply voltage |
24 VDC
|
| Electrical connector |
Connector, 3-pole (2 + PE)
|
| Electrical connection description |
Connector, 3-pole (2 + PE) according to EN 175301-803, with mating connector
|
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD,HFC
|
| Seals |
NBR
|
Description

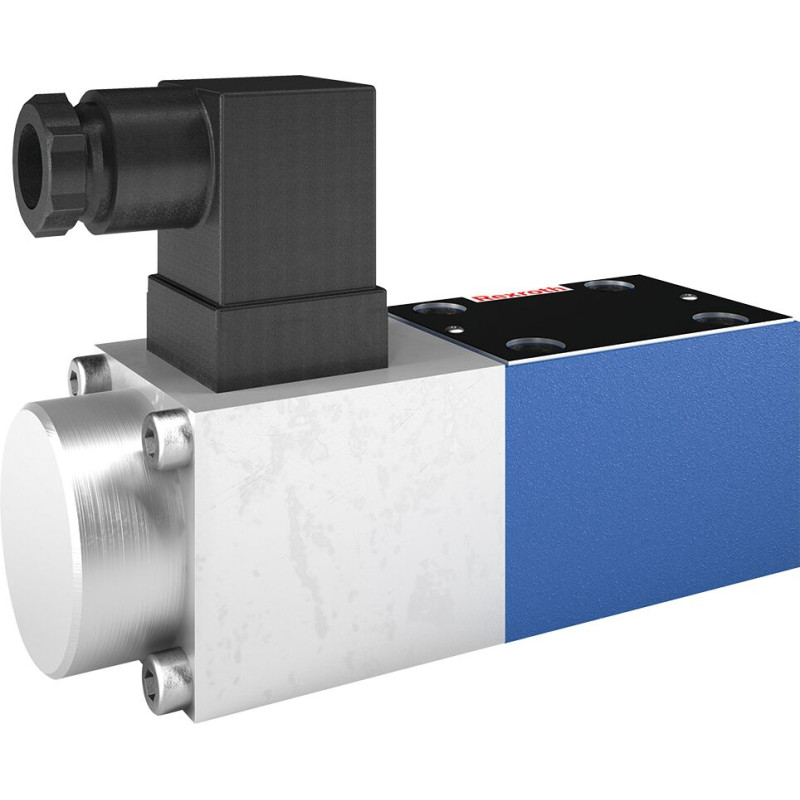

Industrial hydraulic valve in a high performance range. Reliable limitation of the pressure to the command value signal.
Features
- Proportional pressure valve in poppet seat design
- Direct actuated
- Pressure rating 50 bar
DataSheet (1)
Proportional pressure relief valve, direct-operated
(EN)
|
Sign in
|
Manual (2)
|
0811402036
(EN)
|
Sign in
|
|
4c3f5b12-f6f6-40f8-a791-e2239cab42ce_original
(EN)
|
Sign in
|
| Pos |
Name |
Material Number |
| 9899 |
SEAL KIT
06A-MO/BN 5FACH |
R961010487
|
