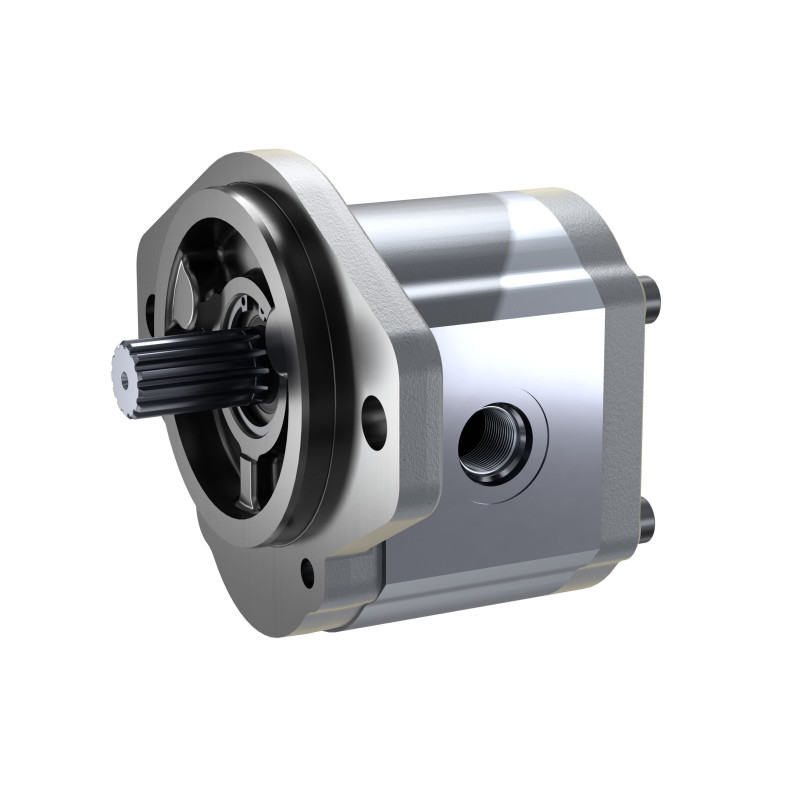

9510390002
AZPN-12-022RDC12MB

9510390002
  • Availability: on request
  • Weight: 5.47 KG
  • Part number: 9510390002
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

9510390002
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max.intermittent pressure 210 bar
Net weight 5.47 kg
Other properties
Direction of rotation Clockwise rotation
Drive shaft Spline shaft SAE J744 22-4 (13T 16/32DP)
Front cover SAE J744 101-2 (B) 2-bolt flange
Function Pump
Housing material Aluminum
Maximum rotational speed 3000 rpm
Model Model N (20 ... 36 cm³/rev)
Noise level Standard noise level
Nominal size 22.5 cm³/rev
Port connection Thread UN-2B, SAE O-ring
Product External Gear Unit
Rear cover Standard
Sealing material NBR
Series Housing width 110 mm
Version Corrosion resistant, pinned
Description

The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.

Features
  • Long service life
  • Consistent high quality based on large-volume production
  • Port connections: flanged or threaded
  • Drive shafts according to ISO or SAE and customer specific solutions
  • Slide bearings for high loads
CAD (1)
File 9510390002_075444497.stp (ALL)
DataSheet (1)
PDF High-Performance external gear pump AZPN (EN)
OperatingInstructions (1)
PDF General instruction manual for external gear units (EN)
TechnicalInformation (1)
PDF 9510390001_9510390001_20201117.pdf (EN)
