Physical size and weight
| Net weight |
13
kg |
| Max. flow |
89.6
l/min |
| Max. flow PU2 |
11.2
l/min |
| Max. intermittent pressure pump unit 1 |
280
bar |
| Max. intermittent pressure pump unit 2 |
280
bar |
Other properties
| Nominal size |
32
cm³/rev |
| Size pump unit 2 |
4
cm³/rev |
| Maximum rotational speed |
2800
rpm |
| Drive shaft |
Conical 1:5
|
| Direction of rotation |
clockwise rotation
|
| Front cover |
Rectangular flange Ø 105 mm
|
| Housing material |
Aluminum
|
| Noise level |
Standard noise level
|
| Product |
External gear unit
|
| Function |
Pump
|
| Model |
Model G (22.5 ... 56 cm³/rev)
|
| Model pump unit 2 |
Model F (4 ... 28 cm³/rev)
|
| Series |
Bearing diameter Ø 26mm
|
| Version |
corrosion-resistant, pinned
|
| Port connection |
Rectangular flange for fitting ISO8434-1
|
| Port connection pump unit 2 |
Square flange DIN 3901/3902
|
| Sealing material |
NBR
|
| Rear cover |
Standard
|
Description
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.
Features
- Long service life
- Consistent high quality based on large-volume production
- Port connections: flanged or threaded
- Drive shafts according to ISO or SAE and customer specific solutions
- Slide bearings for high loads
CAD (1)
InstallationDrawing (1)
OperatingInstructions (1)
General instruction manual for external gear units
(EN)
|
Sign in
|
Manual (4)
|
33e9e1a3-40e4-4412-a677-ed52ed9145de_original
(ALL)
|
Sign in
|
|
External gear pump High Performance AZPF
(EN)
|
Sign in
|
|
External gear pump High Performance AZPG
(EN)
|
Sign in
|

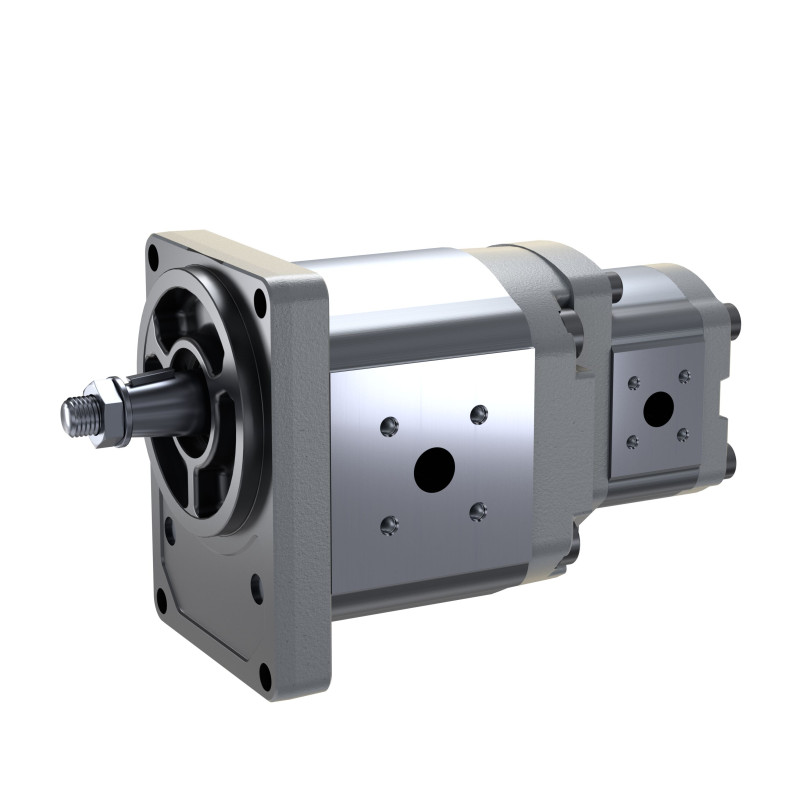

0510767073
(ALL)
|
Sign in
|
| Pos |
Name |
Material Number |
| 1 |
HYDRAULIC GEAR PUMP
AZPG-22-032RCB20MM |
1519222441
|
| 2 |
HYDRAULIC GEAR PUMP
AZPF-12-004RNY20MB |
1519222494
|
| 12/1 |
CARRIER
AZPGF |
1513218001
|
| 12/2 |
O-RING
N31BNR5-45X2,5-NBR70 |
1900210145
|
Loading image...
Preparing drawing...
![Rozpad na náhradní díly]()
| Name |
Material Number |
|
GP-LK40-22L-MS-W3-K 6100058108 100BAR
|
1515702069 |
|
WP-LK35-16S-MS-W3-K 1710001541 315BAR
|
1515702002 |
|
GP-LK40-18L-MS-W3-K 1710001537 100BAR
|
1515702068 |
|
GP-LK40-15L-MS-W3-K 1710001536 100BAR
|
1515702067 |
|
GP-LK40-28L-MS-W3-K 1710001538 100BAR
|
1515702008 |
|
WP-LK40-35L-MS-W3-K 1710001545 100BAR
|
1515702018 |
|
WP-LK40-15L-MS-W3-K 6100058105 100BAR
|
1515702073 |
|
WP-LK40-28L-MS-W3-FK-KLT25 6100148674 &
|
1515702010 |
|
WP-LK40-22L-MS-W3-K 1710001543 100BAR
|
1515702075 |
|
WP-LK40-18L-MS-W3-K 6100058103 100BAR
|
1515702074 |
