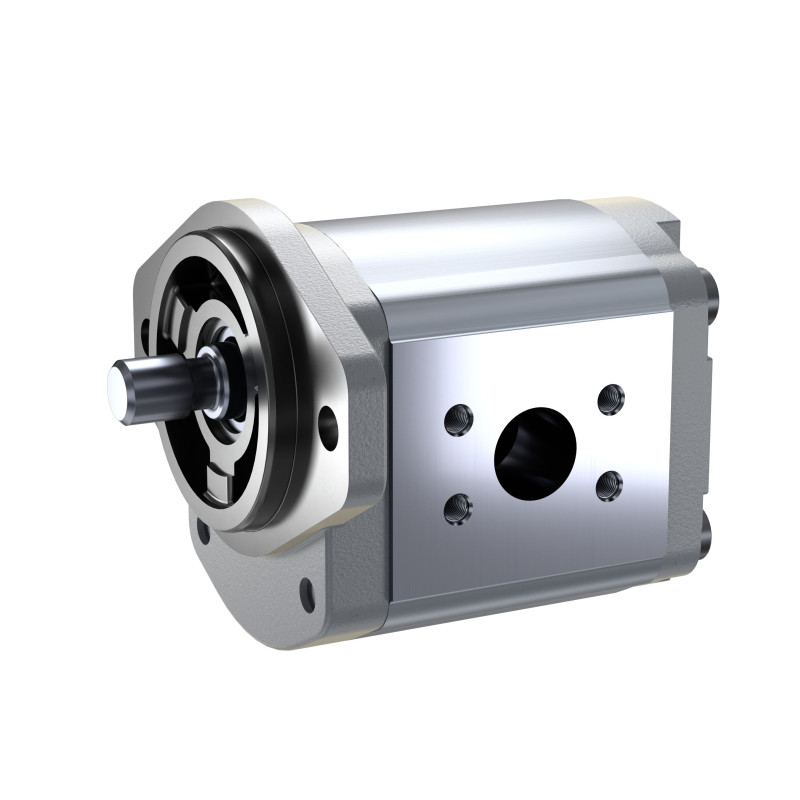

9510490050
AZPG-22-063RDC15MB

9510490050
  • Availability: on request
  • Weight: 11.30 KG
  • Part number: 9510490050
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

9510490050
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max.intermittent pressure 200 bar
Net weight 11.3 kg
Other properties
Direction of rotation Clockwise rotation
Drive shaft Spline shaft SAE J744 22-4 (13T 16/32DP)
Front cover SAE J744 101-2 (B) 2-bolt flange
Function Pump
Housing material Aluminum
Maximum rotational speed 2300 rpm
Model Model G (22.5 ... 56 cm³/rev)
Noise level Standard noise level
Nominal size 63 cm³/rev
Port connection SAE Split flange, UNC thread
Product External Gear Unit
Rear cover Standard
Sealing material NBR
Series Bearing diameter 26 mm
Version Corrosion resistant, pinned
Description

The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.

Features
  • Long service life
  • Consistent high quality based on large-volume production
  • Port connections: flanged or threaded
  • Drive shafts according to ISO or SAE and customer specific solutions
  • Slide bearings for high loads
CAD (2)
File 9510490050_081034335.stp (ALL)
File 9510490050 (ALL)
DataSheet (1)
PDF External gear pump High Performance AZPF (EN)
InstallationDrawing (1)
PDF RA71164949 (EN)
OperatingInstructions (1)
PDF General instruction manual for external gear units (EN)
TechnicalInformation (1)
PDF RA71164949_9510490049_20201117.pdf (EN)
Pos Name Material Number
3 ROTARY SHAFT LIP-TYPE SEAL
42X26X7-SL-NBR-77
 1510283072
800 SEAL KIT
AZPG-2X-NBR
 1517010231
5 RETAINING RING
DIN472-42X1,75
 2916660019
