Physical size and weight
| Net weight |
14.1
kg |
| Max. flow |
130
l/min |
| Max.intermittent pressure |
250
bar |
Other properties
| Nominal size |
50
cm³/rev |
| Maximum rotational speed |
2600
rpm |
| Drive shaft |
Cylindrical ISO Ø 25 mm
|
| Direction of rotation |
clockwise rotation
|
| Front cover |
Non-standard version
|
| Housing material |
Aluminum
|
| Noise level |
Standard noise level
|
| Product |

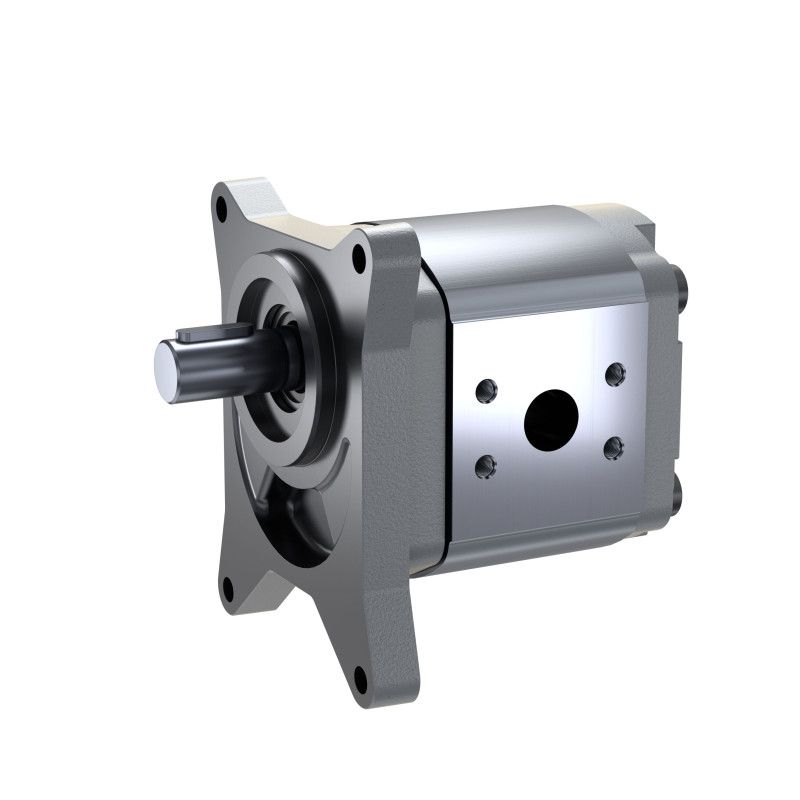

External gear unit
|
| Function |
Pump
|
| Model |
Model G (22.5 ... 56 cm³/rev)
|
| Series |
Bearing diameter Ø 18mm
|
| Version |
corrosion-resistant, pinned
|
| Port connection |
Rectangular flange SAE metric thread
|
| Sealing material |
NBR, WDR in FKM
|
| Rear cover |
Standard
|
Description
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.
Features
- Long service life
- Consistent high quality based on large-volume production
- Port connections: flanged or threaded
- Drive shafts according to ISO or SAE and customer specific solutions
- Slide bearings for high loads
InstallationDrawing (1)
CAD (1)
OperatingInstructions (1)
General instruction manual for external gear units
(EN)
|
Sign in
|
Manual (3)
| Pos |
Name |
Material Number |
| 3 |
ROTARY SHAFT LIP-TYPE SEAL
42X26X7-SL-FKM-77 |
1510283069
|
| 5 |
RETAINING RING
DIN472-42X1,75 |
2916660019
|
| 18 |
PARALLEL KEY
DIN6885-1-A8X7X32-1.0503+C |
1902300240
|
| 800 |
SEAL KIT
AZPG-2X-NBR |
1517010231
|
