Physical size and weight
| Max.intermittent pressure |
280
bar |
| Net weight |
10.5
kg |
Other properties
| Direction of rotation |
Clockwise rotation
|
| Drive shaft |
Spline shaft SAE J744 22-4 (13T 16/32DP)
|
| Front cover |
SAE J744 101-2 (B) 2-bolt flange
|
| Function |
Pump
|
| Housing material |
Aluminum
|
| Maximum rotational speed |
2600
rpm |
| Model |
Model G (22.5 ... 56 cm³/rev)
|
| Noise level |
Standard noise level
|
| Nominal size |
45
cm³/rev |
| Port connection |
SAE Split flange, UNC thread
|

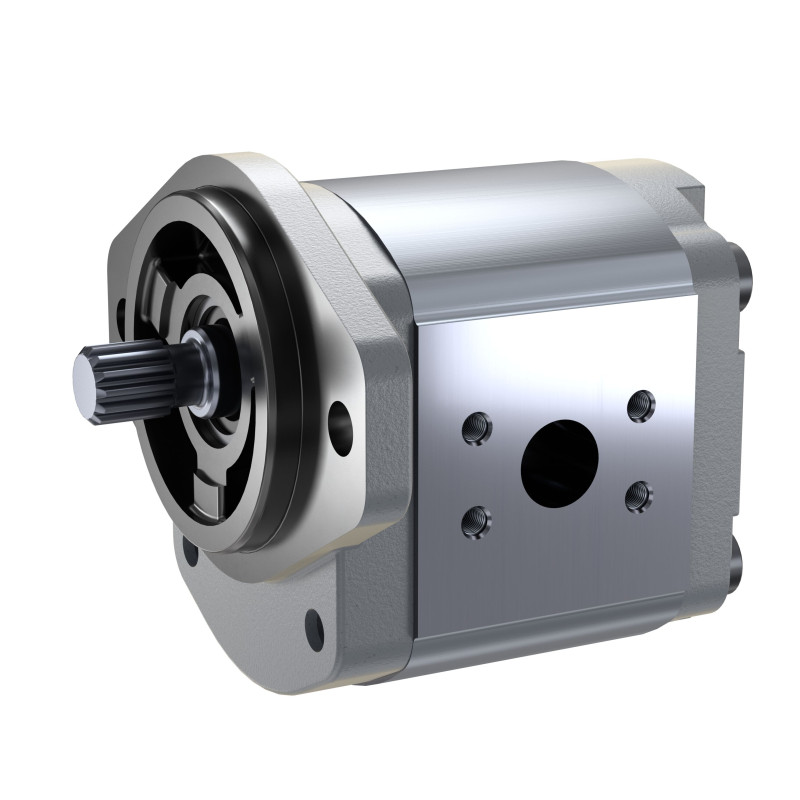

| Product |
External Gear Unit
|
| Rear cover |
Standard
|
| Sealing material |
NBR
|
| Series |
Bearing diameter 26 mm
|
| Version |
Corrosion resistant, pinned
|
Description
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.
Features
- Long service life
- Consistent high quality based on large-volume production
- Port connections: flanged or threaded
- Drive shafts according to ISO or SAE and customer specific solutions
- Slide bearings for high loads
CAD (1)
9510490047_081044491.stp
(ALL)
|
Sign in
|
DataSheet (1)
External gear pump High Performance AZPF
(EN)
|
Sign in
|
OperatingInstructions (1)
|
General instruction manual for external gear units
(EN)
|
Sign in
|
TechnicalInformation (1)
|
RA71140989_9510490046_20201117.pdf
(EN)
|
Sign in
|
| Pos |
Name |
Material Number |
| 3 |
ROTARY SHAFT LIP-TYPE SEAL
42X26X7-SL-NBR-77 |
1510283072
|
| 800 |
SEAL KIT
AZPG-2X-NBR |
1517010231
|
| 5 |
RETAINING RING
DIN472-42X1,75 |
2916660019
|
