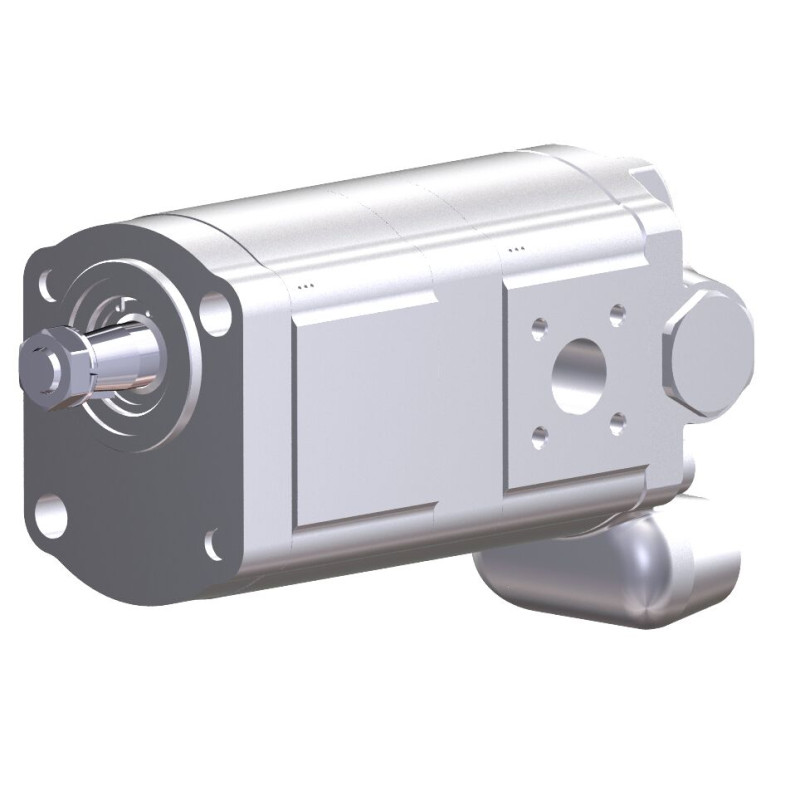

Physical size and weight
| Net weight |
5330
g |
| Max. flow |
32.8
l/min |
| Max. flow PU2 |
32.8
l/min |
| Max. intermittent pressure pump unit 1 |
185
bar |
| Max. intermittent pressure pump unit 2 |
210
bar |
Other properties
| Nominal size |
8
cm³/rev |
| Size pump unit 2 |
8
cm³/rev |
| Maximum rotational speed |
4100
rpm |
| Drive shaft |
Conical 1:5 Dia. 20 mm
|
| Direction of rotation |
Counter-clockwise rotation
|
| Front cover |
2-bolt mounting Dia. 50 mm (I H C)
|
| Housing material |
Aluminum
|
| Noise level |
Standard noise level
|
| Customer part number |
510465339
|
| Product |
External gear unit
|
| Function |
Pump
|
| Model |
4 ... 28 cm³/rev
|
| Model pump unit 2 |
4 .... 28 cm³/rev
|
| Series |
Shaft Ø 18 mm
|
| Version |
phosphatized, pinned
|
| Port connection |
Square flange
|
| Port connection pump unit 2 |
Square flange
|
| Sealing material |
FKM
|
| Rear cover |
FCV excess flow int.
|
| Valve settings |
XXX18
|
| Non-standard version |
Deviations from catalogue standards, see drawing
|
Description
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.
Features
- Long service life
- Consistent high quality based on large-volume production
- Port connections: flanged or threaded
- Drive shafts according to ISO or SAE and customer specific solutions
- Slide bearings for high loads
CAD (1)
0510465339_175542615.stp
(ALL)
|
Sign in
|
TechnicalInformation (1)
A510234730_0510465339_20210818.pdf
(EN)
|
Sign in
|
OperatingInstructions (1)
|
General instruction manual for external gear units
(EN)
|
Sign in
|
Manual (3)
| Pos |
Name |
Material Number |
| 1 |
HYDRAULIC GEAR PUMP
AZPF-11-008LCN20KC |
1519222322
|
| 2 |
HYDRAULIC GEAR PUMP
AZPF-12-008LND20MS |
1519222323
|
| 5 |
TORX FILLISTER SCREW
M10X157-10.9-N67F82742 |
1513450643
|
| 12/1 |
CARRIER
C-AZPFF-BIS11CCM/AZPNF |
1510240009
|
| 12/2 |
SEAL RING
FORMDICHTUNG-NBR-91 |
1510206040
|
| 100/5 |
WOODRUFF KEY
DIN6888-3X5-KOERNER |
1510023001
|
| 100/6 |
SPRING LOCK WASHER
DIN128-A12-FST-N67F82332 |
2916699166
|
| 700/6 |
O-RING
21X2,5-NBR80 |
1520210051
|
Loading image...
Preparing drawing...
![Rozpad na náhradní díly]()
| Name |
Material Number |
|
GP-LK40-22L-MS-W3-K 6100058108 100BAR
|
1515702069 |
|
WP-LK35-16S-MS-W3-K 1710001541 315BAR
|
1515702002 |
|
GP-LK40-18L-MS-W3-K 1710001537 100BAR
|
1515702068 |
|
GP-LK40-15L-MS-W3-K 1710001536 100BAR
|
1515702067 |
|
GP-LK40-28L-MS-W3-K 1710001538 100BAR
|
1515702008 |
|
WP-LK40-35L-MS-W3-K 1710001545 100BAR
|
1515702018 |
|
WP-LK40-15L-MS-W3-K 6100058105 100BAR
|
1515702073 |
|
WP-LK40-28L-MS-W3-FK-KLT25 6100148674 &
|
1515702010 |
|
WP-LK40-22L-MS-W3-K 1710001543 100BAR
|
1515702075 |
|
WP-LK40-18L-MS-W3-K 6100058103 100BAR
|
1515702074 |
