Physical size and weight
| Net weight |
3600
g |
| Max. flow |
42
l/min |
| Max.intermittent pressure |
280
bar |
Other properties
| Nominal size |
14
cm³/rev |
| Maximum rotational speed |
3000
rpm |
| Drive shaft |
Tapered keyed 1:8
|
| Direction of rotation |
Clockwise rotation
|
| Front cover |
Rect. flange dia. 36.47 mm(M8)
|
| Housing material |
Aluminum
|
| Noise level |
Standard noise level
|

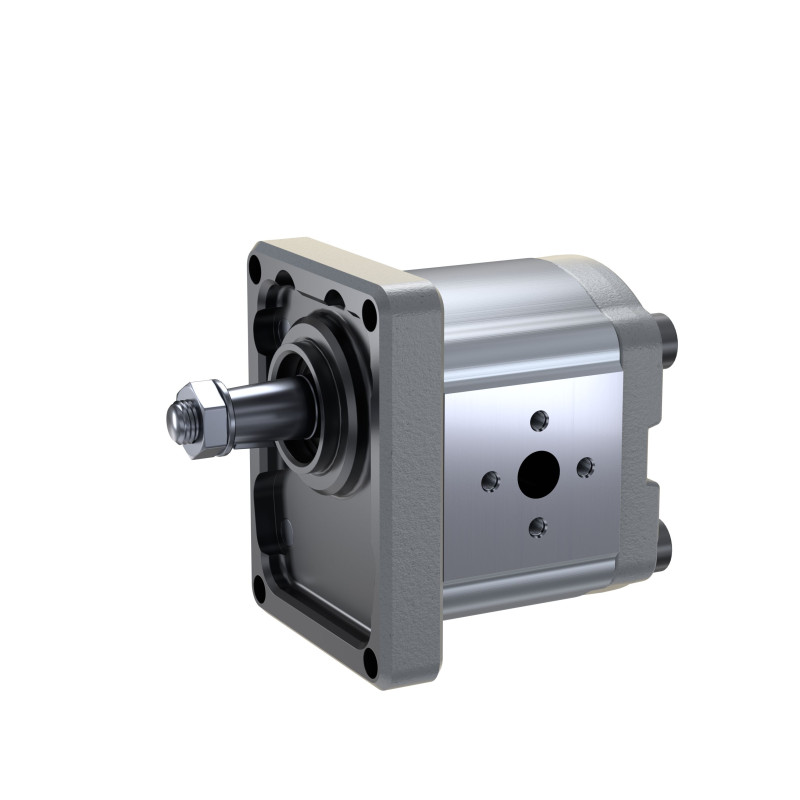

| Product |
External gear unit
|
| Function |
Pump
|
| Model |
High perf (F) (4..28 cm³/rev)
|
| Series |
Bearing diameter 18 mm
|
| Version |
Zn plated or Al, aligned cover
|
| Port connection |
Square flange(Italian version)
|
| Sealing material |
NBR, shaft seal in FKM
|
| Rear cover |
Standard (cast iron)
|
Description
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.
Features
- Long service life
- Consistent high quality based on large-volume production
- Port connections: flanged or threaded
- Drive shafts according to ISO or SAE and customer specific solutions
- Slide bearings for high loads
OperatingInstructions (1)
General instruction manual for external gear units
(EN)
|
Sign in
|
Manual (3)
|
2657abfb-9e1e-4da2-aecf-f6e12d722317_original
(EN)
|
Sign in
|
|
External gear pump High Performance AZPF
(EN)
|
Sign in
|
c6a12260-4dfe-419c-9403-7e9288856ca9_original
(ALL)
|
Sign in
|
| Pos |
Name |
Material Number |
| 3 |
SHAFT SEALING RING
30X18X7-DL-FKM-75 |
1510283087
|
| 5 |
RETAINING RING
DIN472-30X1,2 |
2916660012
|
| 18 |
WOODRUFF KEY
DIN6888-3X5-KOERNER |
1510023001
|
| 20 |
SPRING LOCK WASHER
DIN128-A12-FST-N67F82332 |
2916699166
|
| 800 |
SEAL KIT
AZPF-1X-NBR |
1517010208
|
