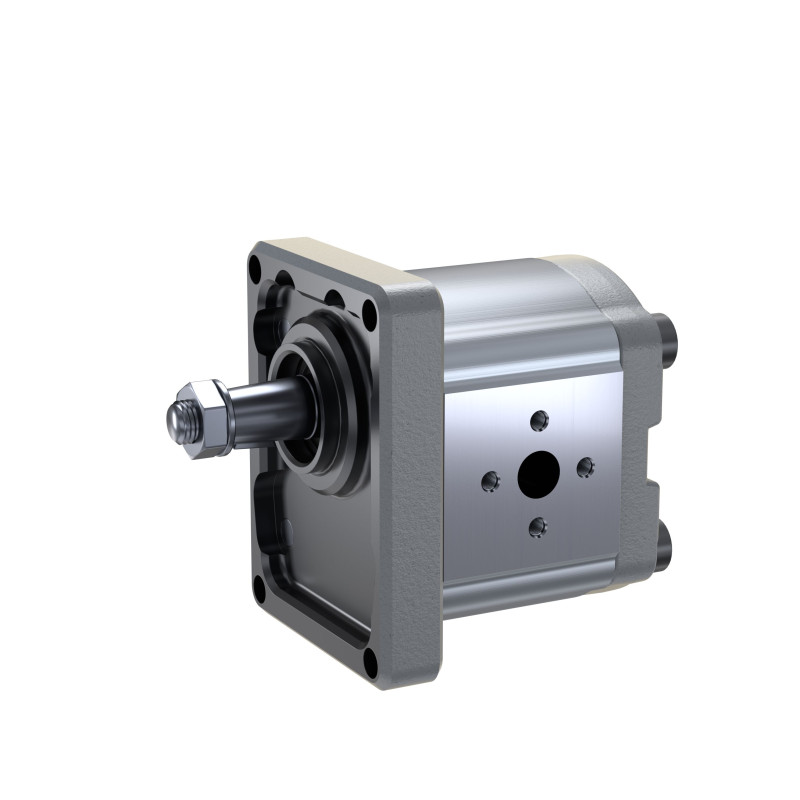

Physical size and weight
| Max.intermittent pressure |
280
bar |
| Net weight |
3300
g |
Other properties
| Direction of rotation |
Clockwise rotation
|
| Drive shaft |
Tapered keyed 1:8
|
| Front cover |
Rect. flange dia. 36.47 mm(M8)
|
| Function |
Pump
|
| Housing material |
Aluminum
|
| Maximum rotational speed |
2680
rpm |
| Model |
High perf (F) (4..28 cm³/rev)
|
| Noise level |
Standard noise level
|
| Nominal size |
8
cm³/rev |
| Port connection |
Square flange(Italian version)
|
| Product |
External gear unit
|
| Rear cover |
Standard (cast iron)
|
| Sealing material |
NBR, shaft seal in FKM
|
| Series |
Bearing diameter 18 mm
|
| Version |
Zn plated or Al, aligned cover
|
Description
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.
Features
- Long service life
- Consistent high quality based on large-volume production
- Port connections: flanged or threaded
- Drive shafts according to ISO or SAE and customer specific solutions
- Slide bearings for high loads
CAD (1)
0510425043_194934577.stp
(ALL)
|
Sign in
|
DataSheet (1)
External gear pump High Performance AZPF
(EN)
|
Sign in
|
OperatingInstructions (1)
|
General instruction manual for external gear units
(EN)
|
Sign in
|
TechnicalInformation (1)
|
A510840309_0510625075_20210818.pdf
(EN)
|
Sign in
|
| Pos |
Name |
Material Number |
| 18 |
WOODRUFF KEY
DIN6888-3X5-KOERNER |
1510023001
|
| 3 |
SHAFT SEALING RING
30X18X7-DL-FKM-75 |
1510283087
|
| 800 |
SEAL KIT
AZPF-1X-NBR |
1517010208
|
| 5 |
RETAINING RING
DIN472-30X1,2 |
2916660012
|
| 20 |
SPRING LOCK WASHER
DIN128-A12-FST-N67F82332 |
2916699166
|
