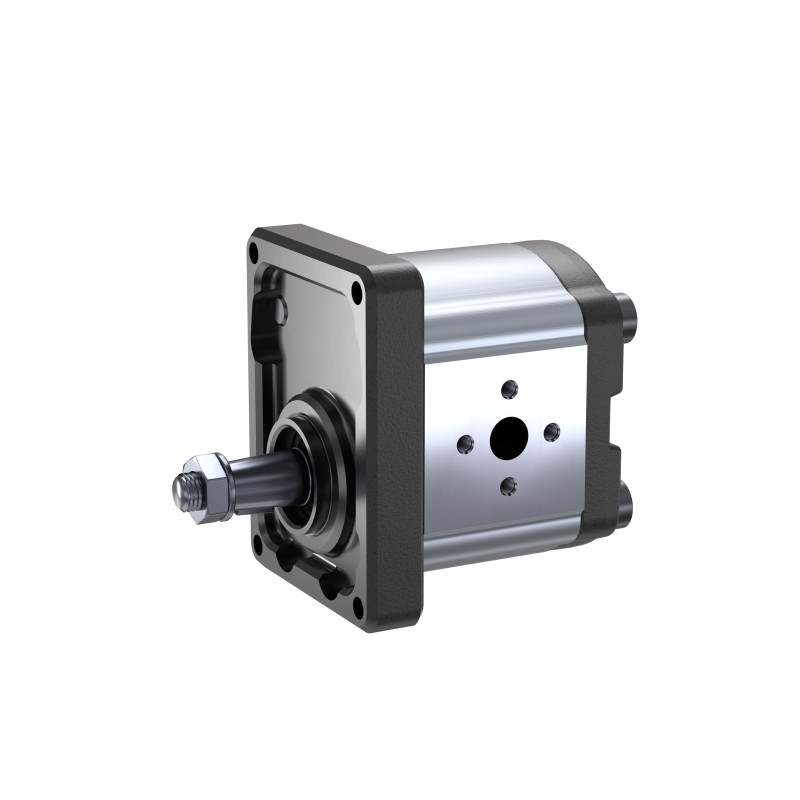

0510425032
AZPF-11-008RHO30PB-S0285

0510425032
  • Availability: on request
  • Weight: 2.20 KG
  • Part number: 0510425032
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

0510425032
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 3.2 kg
Max. flow 21.4 l/min
Max.intermittent pressure 280 bar
Other properties
Nominal size 8 cm³/rev
Maximum rotational speed 2680 rpm
Drive shaft Tapered keyed 1:8
Direction of rotation Clockwise rotation
Front cover Rect. flange dia. 36.47 mm(M8)
Housing material Aluminum
Noise level Standard noise level
Customer part number F-5179724
Product External gear unit
Function Pump
Model High perf (F) (4..28 cm³/rev)
Series Bearing diameter 18 mm
Version Phosphated
Port connection Square flange(Italian version)
Sealing material FKM
Rear cover Standard (cast iron)
Non-standard version Deviations from catalogue standards, see drawing
Description

The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.

Features
  • Long service life
  • Consistent high quality based on large-volume production
  • Port connections: flanged or threaded
  • Drive shafts according to ISO or SAE and customer specific solutions
  • Slide bearings for high loads
CAD (1)
File 0510425032_193547296.stp (ALL)
TechnicalInformation (1)
PDF A510240347_0510525348_20210818.pdf (EN)
OperatingInstructions (1)
PDF General instruction manual for external gear units (EN)
Manual (2)
PDF External gear pump High Performance AZPF (EN)
PDF 0510425032 (EN)
Pos Name Material Number
3 SHAFT SEALING RING
30X17X7-DL-FKM-75
1510283027
5/1 TOOTHED RING
ERSATZTEILE
1510119005
5 RETAINING RING
DIN472-30X1,2
2916660012
18 WOODRUFF KEY
ERSATZTEILE
1510023002
800 SEAL KIT
AZPF-1X-FKM
1517010193
