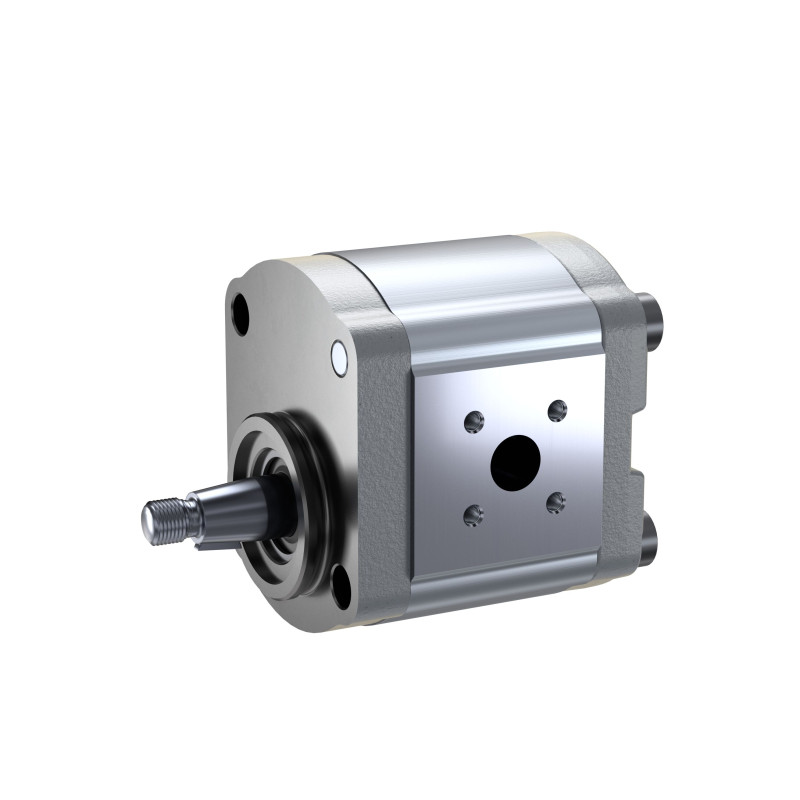

0510415316
AZPF-11-008LCP20KB-S0007

0510415316
  • Availability: 2-4 weeks
  • Weight: 2.74 KG
  • Part number: 0510415316
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

0510415316
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 2736 g
Max. flow 32 l/min
Max.intermittent pressure 280 bar
Other properties
Nominal size 8 cm³/rev
Maximum rotational speed 4000 rpm
Drive shaft Tapered keyed 1:5
Direction of rotation Counter-clockwise rotation
Front cover 2-bolt dia. 50 mm (option 2)
Housing material Aluminum
Noise level Standard noise level
Customer part number 510415316
Product External gear unit
Function Pump
Model High perf (F) (4..28 cm³/rev)
Series Bearing diameter 18 mm
Version Phosphated, aligned covers
Port connection Square flange (German version)
Sealing material NBR, shaft seal in FKM
Rear cover Standard (cast iron)
Non-standard version Deviations from catalogue standards, see drawing
Description

The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.

Features
  • Long service life
  • Consistent high quality based on large-volume production
  • Port connections: flanged or threaded
  • Drive shafts according to ISO or SAE and customer specific solutions
  • Slide bearings for high loads
TechnicalInformation (1)
PDF RA59601272_0510615318_20210819.pdf (EN)
CAD (1)
File 0510415316_202844997.stp (ALL)
OperatingInstructions (1)
PDF General instruction manual for external gear units (EN)
Manual (2)
PDF 0510415316 (EN)
PDF External gear pump High Performance AZPF (EN)
Pos Name Material Number
3 SHAFT SEALING RING
30X17X7-DL-FKM-75
1510283027
5 RETAINING RING
DIN472-30X1,2
2916660012
18 WOODRUFF KEY
DIN6888-3X5-KOERNER
1510023001
800 SEAL KIT
AZPF-1X-NBR
1517010152
Name Material Number
GP-LK40-22L-MS-W3-K 6100058108 100BAR 1515702069
WP-LK35-16S-MS-W3-K 1710001541 315BAR 1515702002
GP-LK40-18L-MS-W3-K 1710001537 100BAR 1515702068
GP-LK40-15L-MS-W3-K 1710001536 100BAR 1515702067
GP-LK40-28L-MS-W3-K 1710001538 100BAR 1515702008
WP-LK40-35L-MS-W3-K 1710001545 100BAR 1515702018
WP-LK40-15L-MS-W3-K 6100058105 100BAR 1515702073
WP-LK40-28L-MS-W3-FK-KLT25 6100148674 & 1515702010
WP-LK40-22L-MS-W3-K 1710001543 100BAR 1515702075
WP-LK40-18L-MS-W3-K 6100058103 100BAR 1515702074
