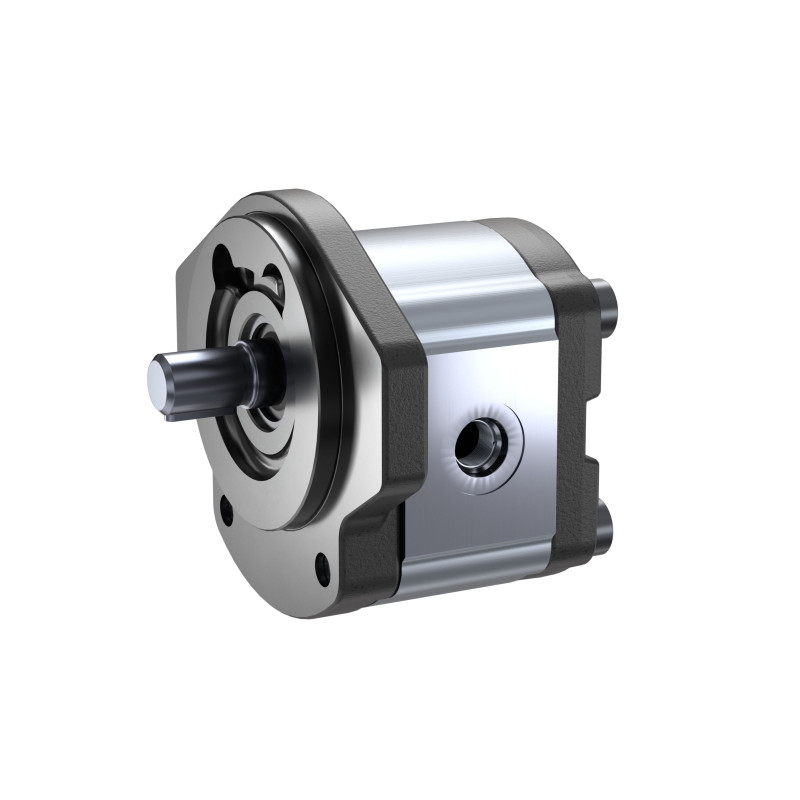

0510325011
AZPF-11-005RQR12MB-S0270

0510325011
  • Availability: on request
  • Weight: 3.24 KG
  • Part number: 0510325011
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

0510325011
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 3240 g
Max. flow 165 l/min
Max.intermittent pressure 210 bar
Other properties
Nominal size 55 cm³/rev
Maximum rotational speed 3000 rpm
Drive shaft Parallel SAE 16-1, 32mm long
Direction of rotation Clockwise rotation
Front cover 2-bolt SAE J744 82-2 (A)
Housing material Aluminum
Noise level Standard noise level
Product External gear unit
Function Pump
Model High perf (F) (4..28 cm³/rev)
Series Bearing diameter 18 mm
Version Phosphated
Port connection UN-thread, ISO 11926-1, O-ring
Sealing material NBR
Rear cover Standard (cast iron)
Non-standard version Deviations from catalogue standards, see drawing
Description

The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.

Features
  • Long service life
  • Consistent high quality based on large-volume production
  • Port connections: flanged or threaded
  • Drive shafts according to ISO or SAE and customer specific solutions
  • Slide bearings for high loads
TechnicalInformation (1)
PDF RA55558682_0510225011_20201117.pdf (EN)
CAD (1)
File 0510325011_20201119.stp (ALL)
OperatingInstructions (1)
PDF General instruction manual for external gear units (EN)
Manual (3)
PDF 1e45643a-c2fc-4f8f-b4aa-442765eed4eb_original (EN)
PDF External gear pump High Performance AZPF (EN)
File b979b822-9742-4259-a7e6-3454e7233d4b_original (ALL)
Pos Name Material Number
3 SHAFT SEALING RING
30X17X7-SL-NBR-82
 1510283008
5 RETAINING RING
DIN472-30X1,2
 2916660012
18 PARALLEL KEY
DIN6885-1-A4X4X20-1.0503+C
 1902300046
800 SEAL KIT
AZPF-1X-NBR
 1517010152
