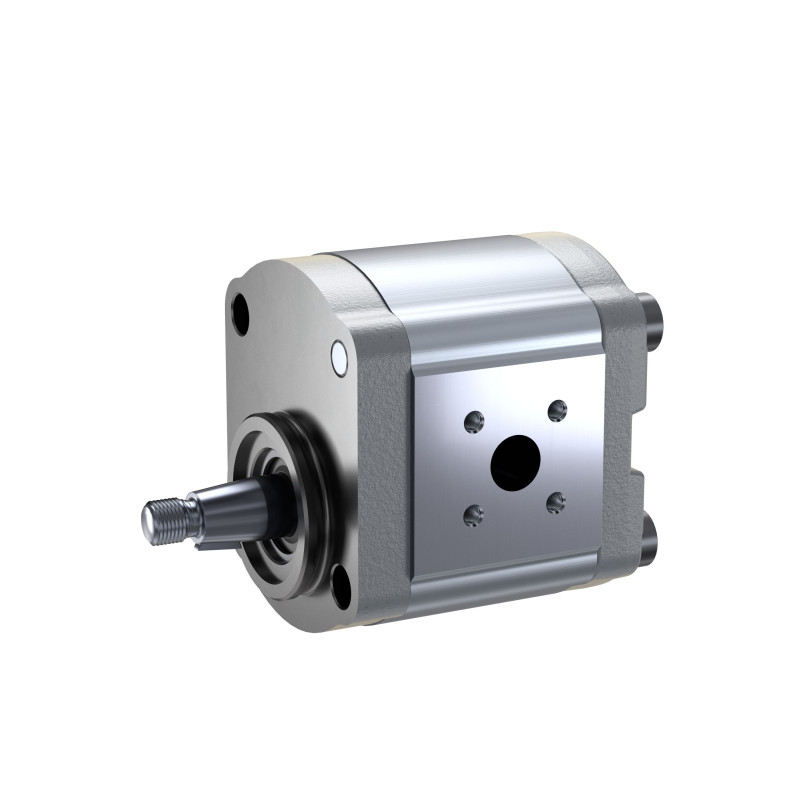

0510315006
AZPF-11-005RCP20KB-S0007

0510315006
  • Availability: on request
  • Weight: 2.62 KG
  • Part number: 0510315006
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

0510315006
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max.intermittent pressure 280 bar
Net weight 2616 g
Other properties
Direction of rotation Clockwise rotation
Drive shaft Tapered keyed 1:5
Front cover 2-bolt dia. 50 mm (option 2)
Function Pump
Housing material Aluminum
Maximum rotational speed 4000 rpm
Model High perf (F) (4..28 cm³/rev)
Noise level Standard noise level
Nominal size 55 cm³/rev
Non-standard version Deviations from catalogue standards, see drawing
Port connection Square flange (German version)
Product External gear unit
Rear cover Standard (cast iron)
Sealing material NBR, shaft seal in FKM
Series Bearing diameter 18 mm
Version Phosphated, aligned covers
Description

The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.

Features
  • Long service life
  • Consistent high quality based on large-volume production
  • Port connections: flanged or threaded
  • Drive shafts according to ISO or SAE and customer specific solutions
  • Slide bearings for high loads
CAD (1)
File 0510315006_184228295.stp (ALL)
DataSheet (1)
PDF External gear pump High Performance AZPF (EN)
OperatingInstructions (1)
PDF General instruction manual for external gear units (EN)
TechnicalInformation (1)
PDF RA59601272_0510615318_20210819.pdf (EN)
Pos Name Material Number
18 WOODRUFF KEY
DIN6888-3X5-KOERNER
1510023001
3 SHAFT SEALING RING
30X17X7-DL-FKM-75
1510283027
800 SEAL KIT
AZPF-1X-NBR
1517010152
5 RETAINING RING
DIN472-30X1,2
2916660012
Name Material Number
WP-LK35-16S-MS-W3-K 1710001541 315BAR 1515702002
GP-LK40-28L-MS-W3-K 1710001538 100BAR 1515702008
WP-LK40-28L-MS-W3-FK-KLT25 6100148674 & 1515702010
WP-LK40-35L-MS-W3-K 1710001545 100BAR 1515702018
GP-LK40-15L-MS-W3-K 1710001536 100BAR 1515702067
GP-LK40-18L-MS-W3-K 1710001537 100BAR 1515702068
GP-LK40-22L-MS-W3-K 6100058108 100BAR 1515702069
WP-LK40-15L-MS-W3-K 6100058105 100BAR 1515702073
WP-LK40-18L-MS-W3-K 6100058103 100BAR 1515702074
WP-LK40-22L-MS-W3-K 1710001543 100BAR 1515702075
