Physical size and weight
| Net weight |
3180
g |
| Max. flow |
16
l/min |
| Max.intermittent pressure |
210
bar |
Other properties
| Nominal size |
4
cm³/rev |
| Maximum rotational speed |
4000
rpm |
| Drive shaft |
Parallel SAE 16-1, 32mm long
|
| Direction of rotation |
Clockwise rotation
|
| Front cover |
2-bolt SAE J744 82-2 (A)
|
| Housing material |
Aluminum
|
| Noise level |
Standard noise level
|
| Product |
External gear unit
|
| Function |
Pump
|
| Model |
High perf (F) (4..28 cm³/rev)
|
| Series |
Bearing diameter 18 mm
|
| Version |
Phosphated
|
| Port connection |
UN-thread, ISO 11926-1, O-ring
|
| Sealing material |
NBR
|
| Rear cover |
Standard (cast iron)
|
| Non-standard version |
Deviations from catalogue standards, see drawing
|
Description
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.
Features
- Long service life
- Consistent high quality based on large-volume production
- Port connections: flanged or threaded
- Drive shafts according to ISO or SAE and customer specific solutions
- Slide bearings for high loads
TechnicalInformation (1)
RA55558682_0510225011_20201117.pdf
(EN)
|
Sign in
|
CAD (2)
OperatingInstructions (1)
|
General instruction manual for external gear units
(EN)
|
Sign in
|
Manual (3)
|
1e45643a-c2fc-4f8f-b4aa-442765eed4eb_original
(EN)
|
Sign in
|
|

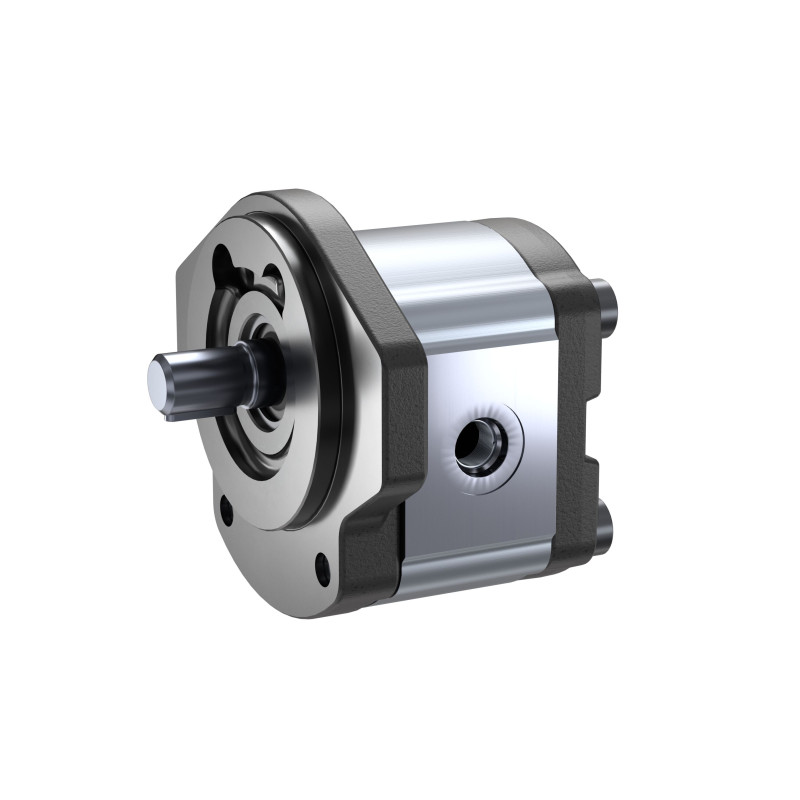

External gear pump High Performance AZPF
(EN)
|
Sign in
|
afc3500e-3872-4e1a-8ed3-644daeaee86e_original
(ALL)
|
Sign in
|
| Pos |
Name |
Material Number |
| 3 |
SHAFT SEALING RING
30X17X7-SL-NBR-82 |
1510283008
|
| 5 |
RETAINING RING
DIN472-30X1,2 |
2916660012
|
| 18 |
PARALLEL KEY
DIN6885-1-A4X4X20-1.0503+C |
1902300046
|
| 800 |
SEAL KIT
AZPF-1X-NBR |
1517010152
|
