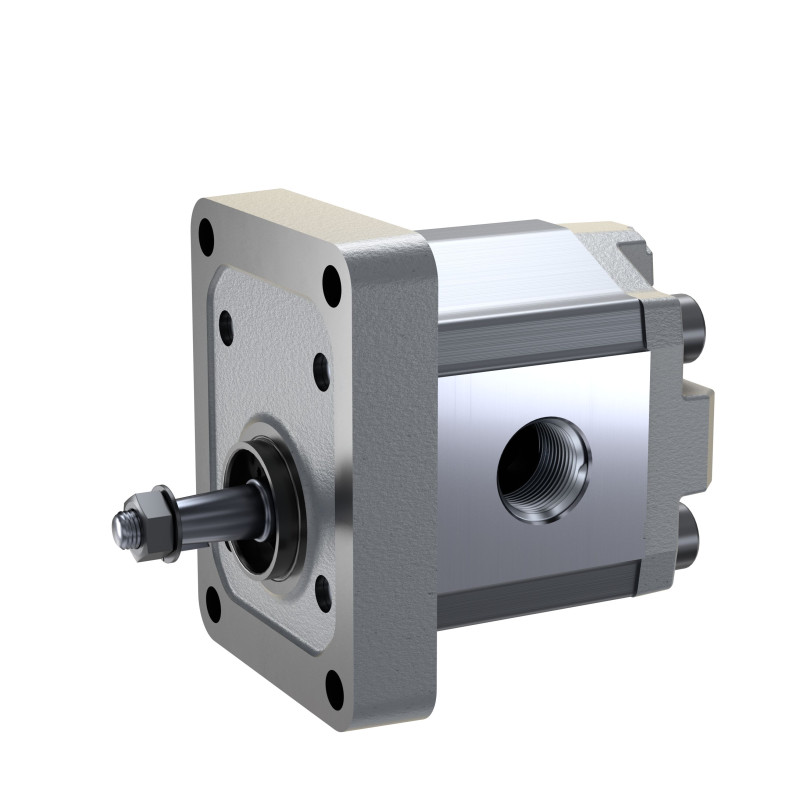

0510120021
AZPB-32-2.5RHO01MB

0510120021
  • Availability: on request
  • Weight: 1.00 KG
  • Part number: 0510120021
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

0510120021
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 1.3 kg
Max. flow 95.5 l/min
Max.intermittent pressure 250 bar
Other properties
Nominal size 25 cm³/rev
Maximum rotational speed 3820 rpm
Drive shaft Tapered keyed 1:8
Direction of rotation Clockwise rotation
Front cover Rect.flange 25.38 mm, Italian
Housing material Aluminum
Noise level Standard noise level
Product External gear unit
Function Pump
Model High perf(B)(1.0..7.1 cc/rev)
Series Bearing dia. 12 mm or 12.7 mm
Version Zn plated or Al, aligned cover
Port connection Pipe thread acc. to ISO 228-1
Sealing material NBR
Rear cover Standard (cast iron)
Description

The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.

Features
  • Long service life
  • Consistent high quality based on large-volume production
  • Port connections: flanged or threaded
  • Drive shafts according to ISO or SAE and customer specific solutions
  • Slide bearings for high loads
Manual (3)
PDF 04de958c-25a3-4711-ac7e-8d9ac9fe7809_original (EN)
PDF ef4f50d0-074c-46e2-bf21-de6f0e0dfbcf_original (EN)
File fe586d0a-a6f9-47d9-8a48-0c2e3246e772_original (ALL)
TechnicalInformation (1)
PDF RA50196186_0510020003_20210818.pdf (EN)
CAD (1)
File 0510120021.stp (ALL)
OperatingInstructions (1)
PDF General instruction manual for external gear units (EN)
Pos Name Material Number
3 SHAFT SEALING RING
22X12X6 NBR80
1510283074
5 RETAINING RING
DIN472-22X1
2916660007
18 WOODRUFF KEY
2,4X2,6 DIN 6888
1510023005
800 SEAL KIT
AZPB-3X-NBR
1517010248
