Physical size and weight
| Max.intermittent pressure |
250
bar |
| Net weight |
1
kg |
Other properties
| Direction of rotation |
Counter-clockwise rotation
|
| Drive shaft |
Tang drive
|
| Front cover |
2-bolt dia. 32 mm, with O-ring
|
| Function |
Pump
|
| Housing material |
Aluminum
|
| Maximum rotational speed |
5000
rpm |
| Model |
High perf(B)(1.0..7.1 cc/rev)
|
| Noise level |
Standard noise level
|
| Nominal size |
2
cm³/rev |
| Port connection |
Metric thread, ISO 9974-1
|

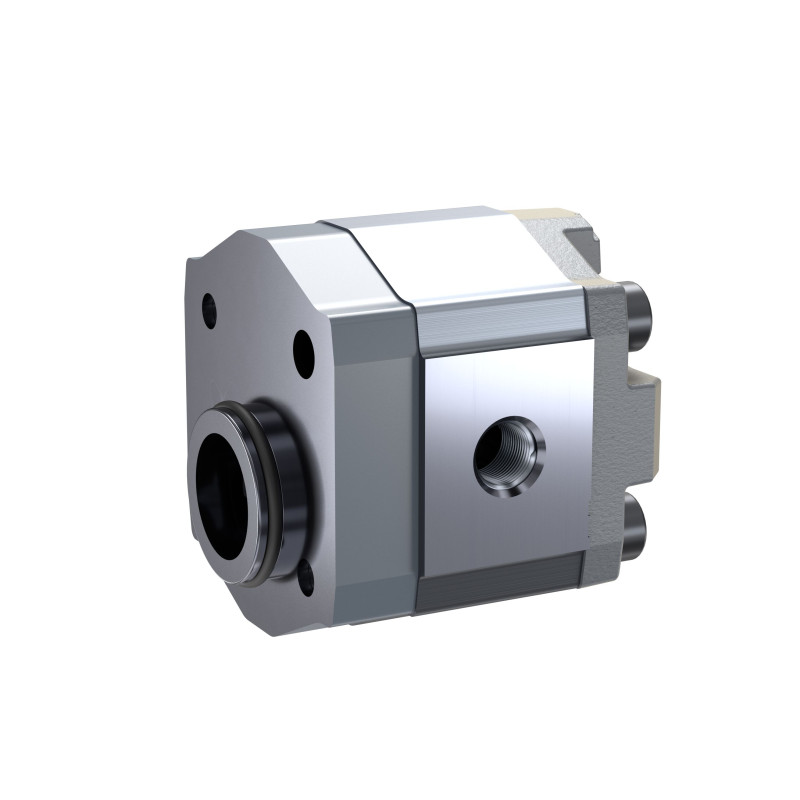

| Product |
External gear unit
|
| Rear cover |
Standard (cast iron)
|
| Sealing material |
NBR
|
| Series |
Bearing dia. 12 mm or 12.7 mm
|
| Version |
Zn plated or Al, aligned cover
|
Description
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.
Features
- Long service life
- Consistent high quality based on large-volume production
- Port connections: flanged or threaded
- Drive shafts according to ISO or SAE and customer specific solutions
- Slide bearings for high loads
