Physical size and weight
| Net weight |
1.2
kg |
| Max. flow |
10
l/min |
| Max.intermittent pressure |
250
bar |
Other properties
| Nominal size |
2
cm³/rev |
| Maximum rotational speed |
5000
rpm |
| Drive shaft |
Tang drive
|
| Direction of rotation |
Counter-clockwise rotation
|
| Front cover |
Mounting flange (CPMBosch EP9)
|
| Housing material |
Aluminum
|
| Noise level |
Standard noise level
|
| Product |

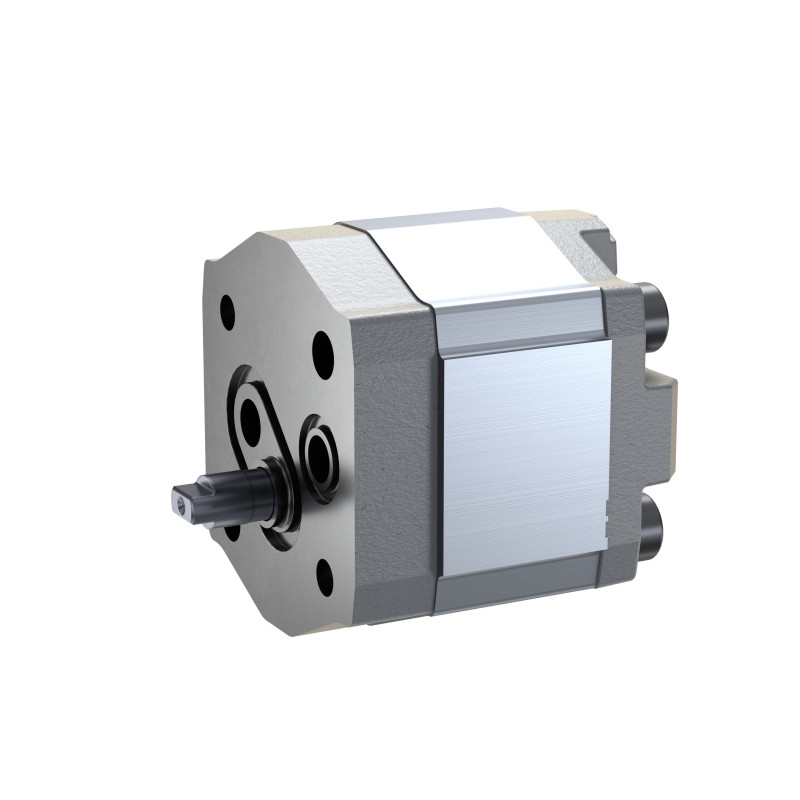

External gear unit
|
| Function |
Pump
|
| Model |
High perf(B)(1.0..7.1 cc/rev)
|
| Series |
Bearing dia. 12 mm or 12.7 mm
|
| Version |
Zn plated or Al, aligned cover
|
| Port connection |
Non-standard version
|
| Sealing material |
NBR
|
| Rear cover |
Axial pressure & suction port
|
Description
The key task of external gear pumps is to convert mechanical energy (torque and rotational speed) into hydraulic energy (flow and pressure). To avoid unnecessarily high heat losses, units with high efficiencies are sought after. These are realized by means of pressure-dependent gap sealing and high-precision manufacturing technology.
Features
- Long service life
- Consistent high quality based on large-volume production
- Port connections: flanged or threaded
- Drive shafts according to ISO or SAE and customer specific solutions
- Slide bearings for high loads
Manual (3)
04de958c-25a3-4711-ac7e-8d9ac9fe7809_original
(EN)
|
Sign in
|
|
54b61e75-d283-40b6-a4f5-6d9cbdce1415_original
(ALL)
|
Sign in
|
LEFT(G5,10)
(ALL)
|
Sign in
|
InstallationDrawing (1)
CAD (1)
OperatingInstructions (1)
|
General instruction manual for external gear units
(EN)
|
Sign in
|
| Pos |
Name |
Material Number |
| 800 |
SEAL KIT
AZPB-3X-NBR |
1517010248
|
