Physical size and weight
| Net weight |
44
kg |
| Operating pressure, max. |
350
bar |
Other properties
| ECLASS_13_Classification |
51-47-01-02
|
| Product family |
HSR 10
|
| Port size |
G3/4
|
| Size |
10
|
| Hydraulic fluid |
HL,HLP,HVLP
|
| Surface coating |
Galvanic coating EN ISO 19598
|
Description

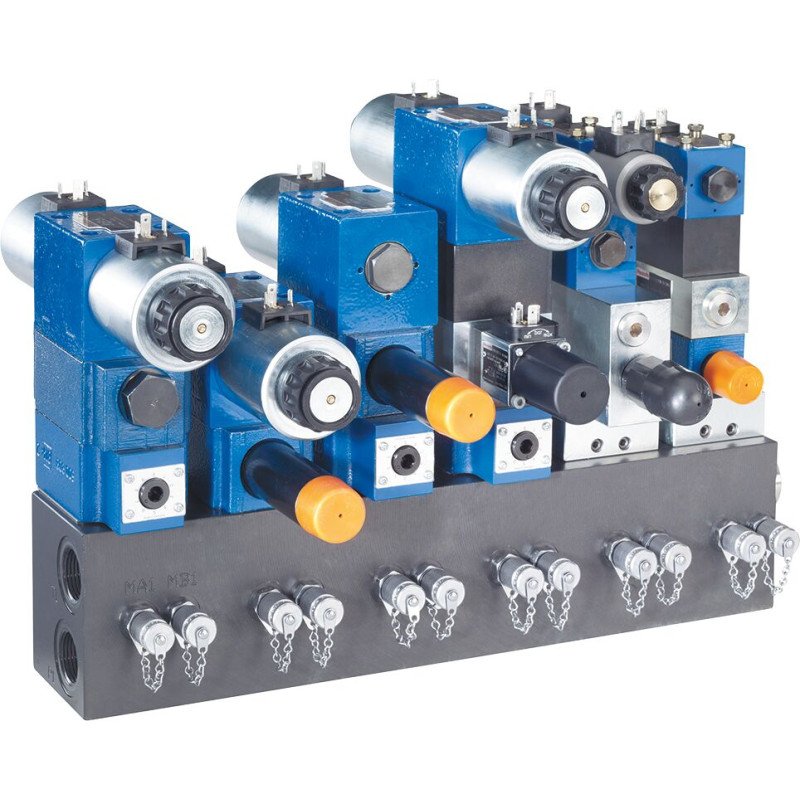

Compact hydraulic controls for 7 vertical stackings of size 10
Features
- Base element for ready-for-connection controls in vertical stacking design
- Compacter hydraulic control block
- Common pump and tank line
- Separate actuator ports of the stations and measuring ports G1/4 in A and B
CAD (1)
Manual (2)
f8f86090-3795-433d-867d-a07c8ba0104b_original
(EN)
|
