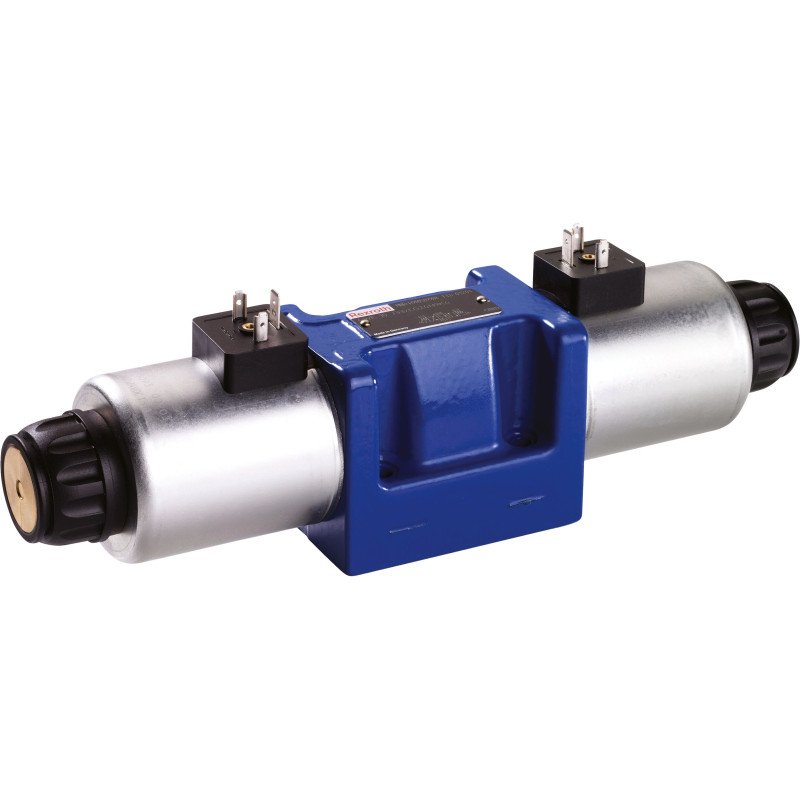

R901561731
5-4WE10M5X/EG24N9K4/M

R901561731
  • Availability: on request
  • Weight: 5.51 KG
  • Part number: R901561731
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901561731
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 5.51 kg
Operating pressure, max. 350 bar
Other properties
Connection diagram ISO 4401-05-04-0-05
ECLASS_13_Classification 51-44-01-02
Product family 5-.WE10../E
Spool symbol Symbol M
Type of connection Subplate mounting
Size 10
Type of actuation with solenoid actuation
Number of ports 4
Number of switching positions 3
Supply voltage 24 VDC
Electrical connector Connector, 3-pole (2 + PE)
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HETG,HFC
Seals NBR
Description

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol

Features
  • Spool valve
  • Direct actuated
Manual (2)
PDF Directional spool valves, direct operated, with solenoid actuation (EN)
PDF R901561731 (EN)
Pos Name Material Number
157 SOLENOID COIL
63-K4___-40G24___02
 R901258093
998 NUT
63 N9-N0-5K+O-RING ET
 R961008869
999 SEAL KIT
5-.WE 10.5X/E./M
 R961007867
9991 ACTUATOR TUBE
63S-N9-02__210V_-D-M-O*ET
 R961015698
