Physical size and weight
| Net weight |
5.5
kg |
| Operating pressure, max. |
350
bar |
| Max. flow |
125
l/min |
Other properties
| Connection diagram |
ISO 4401-05-04-0-05
|
| Product family |
5-.WE10../E
|
| ECLASS_13_Classification |
51-44-01-02
|
| Spool symbol |
Symbol J
|
| Type of connection |
Subplate mounting
|
| Size |
10
|
| Type of actuation |
with solenoid actuation
|
| Number of ports |
4
|
| Number of switching positions |
3
|
| Supply voltage |
24 VDC
|
| Electrical connector |
Connector, 3-pole (2 + PE)
|
| Electrical connection description |
Connector 3-pole (2 + PE) according to EN 175301-803
|
| Hydraulic fluid |
HFC
|
| Seals |
NBR (HFC)
|
Description
Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.
Features
- Spool valve
- Direct actuated
Manual (2)

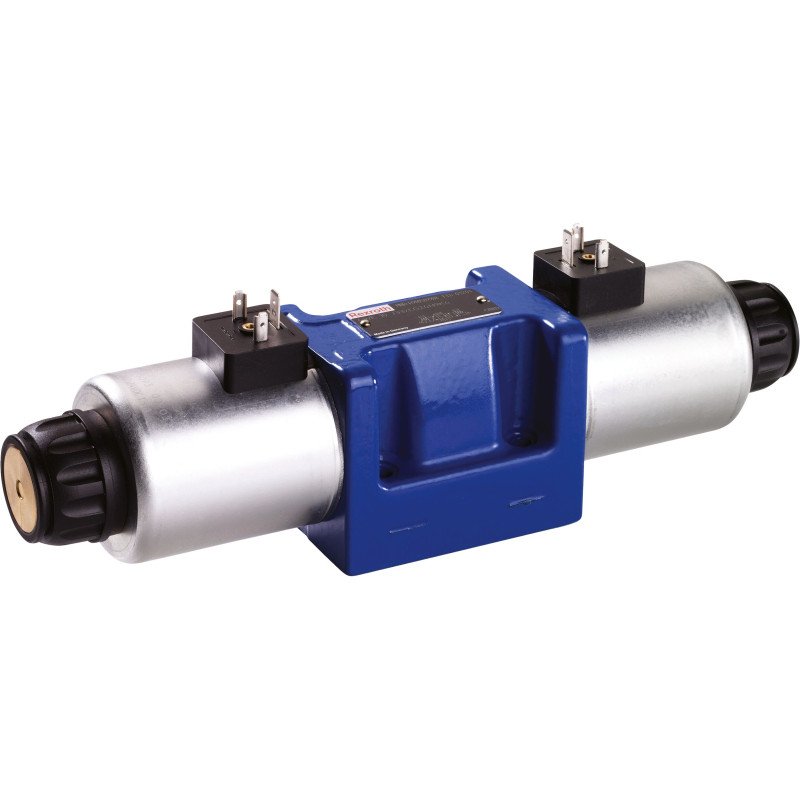

Directional spool valves, direct operated, with solenoid actuation
(EN)
|
Sign in
|
|
R901336064
(EN)
|
Sign in
|
| Pos |
Name |
Material Number |
| 157 |
SOLENOID COIL
63-K4___-40G24___02 |
R901258093
|
| 998 |
NUT
63 N9-N0-5K+O-RING ET |
R961008869
|
| 9991 |
ACTUATOR TUBE
63S-N9-02__210MH-D-M-O*ET |
R961015700
|
| 9993 |
THROTTLE SCREW INSERT
5-4WE10-5X/E_C/A06/08/10*ET |
R961015757
|
