Physical size and weight
| Net weight |
5.52
kg |
| Operating pressure, max. |
350
bar |
| Max. flow |
125
l/min |
Other properties
| Connection diagram |
ISO 4401-05-04-0-05
|
| Product family |
5-.WE10../E
|
| ECLASS_13_Classification |
51-44-01-02
|
| Spool symbol |
Symbol J
|
| Type of connection |
Subplate mounting
|
| Size |
10
|
| Type of actuation |
with solenoid actuation
|
| Number of ports |
4
|
| Number of switching positions |
3
|
| Supply voltage |
205 VDC
|
| Electrical connector |
Connector, 3-pole (2 + PE)
|
| Electrical connection description |
Connector 3-pole (2 + PE) according to EN 175301-803
|
| Conformity description |
UKCA – Low-Voltage Directive SI2016/1091,CE – Low-Voltage Directive 2014/35/EU
|
| Conformity |
UKCA,CE
|
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD,HETG,HFC
|
| Seals |
NBR
|
Description
Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.
Features
- Spool valve
- Direct actuated
Manual (2)
Directional spool valves, direct operated, with solenoid actuation
(EN)
|
Sign in
|
|

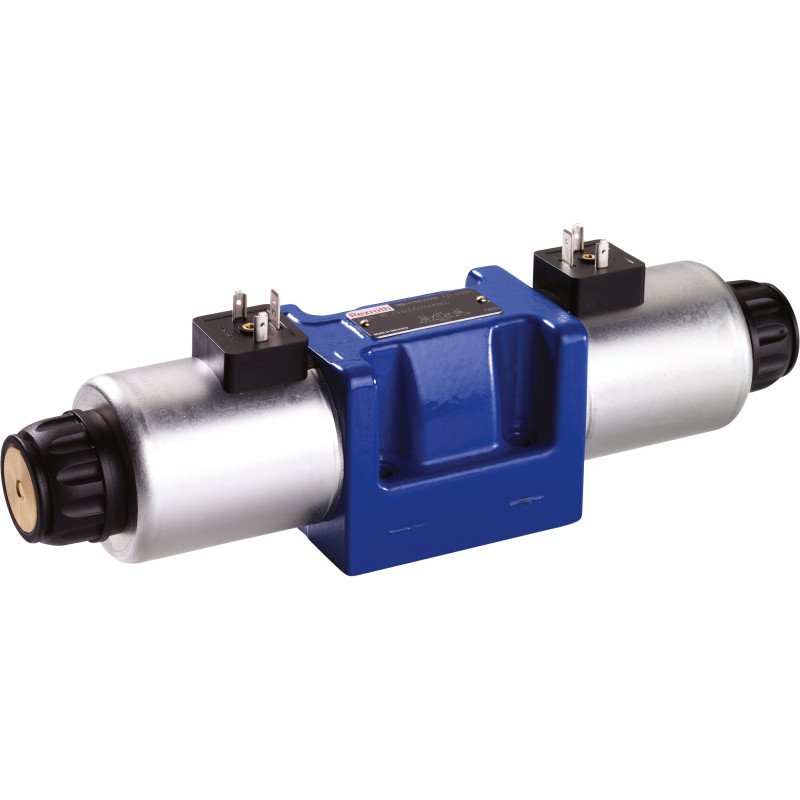

R901350490
(EN)
|
Sign in
|
| Pos |
Name |
Material Number |
| 157 |
SOLENOID COIL
63-K4___-40G205__02 |
R901267190
|
| 998 |
NUT
63 N9-N0-5K+O-RING ET |
R961008869
|
| 999 |
SEAL KIT
5-.WE 10.5X/E./M |
R961007867
|
| 9991 |
ACTUATOR TUBE
63S-N9-02__210V_-D-M-O*ET |
R961015698
|
| 9993 |
THROTTLE SCREW INSERT
5-4WE10-5X/E_C/A06/08/10*ET |
R961015757
|
