Physical size and weight
| Net weight |
19
kg |
| Length |
510
mm |
| Width |
335
mm |
| Height |
250
mm |
| Operating pressure, max. |
350
bar |
| Max. flow |
900
l/min |
| Nominal flow |
350
l/min |
Other properties
| Connection diagram |
ISO 4401-08-08-0-05
|
| Product family |
4WRL.E(W)
|
| ECLASS_13_Classification |
51-45-01-02
|
| Spool symbol |
Symbol W1Z
|
| Type of connection |
Subplate mounting
|
| Size |
25
|
| Type of actuation |
Electrical with external electronics
|
| Number of ports |
4
|
| Number of switching positions |
3
|
| Supply voltage |
24 VDC
|
| Electrical connector |
Connector, 3-pole (2 + PE)
|
| Electrical connection description |
Connector according to EN 43563-AM6
|
| Hydraulic fluid |
HL,HLP
|
| Seals |
NBR
|
Description

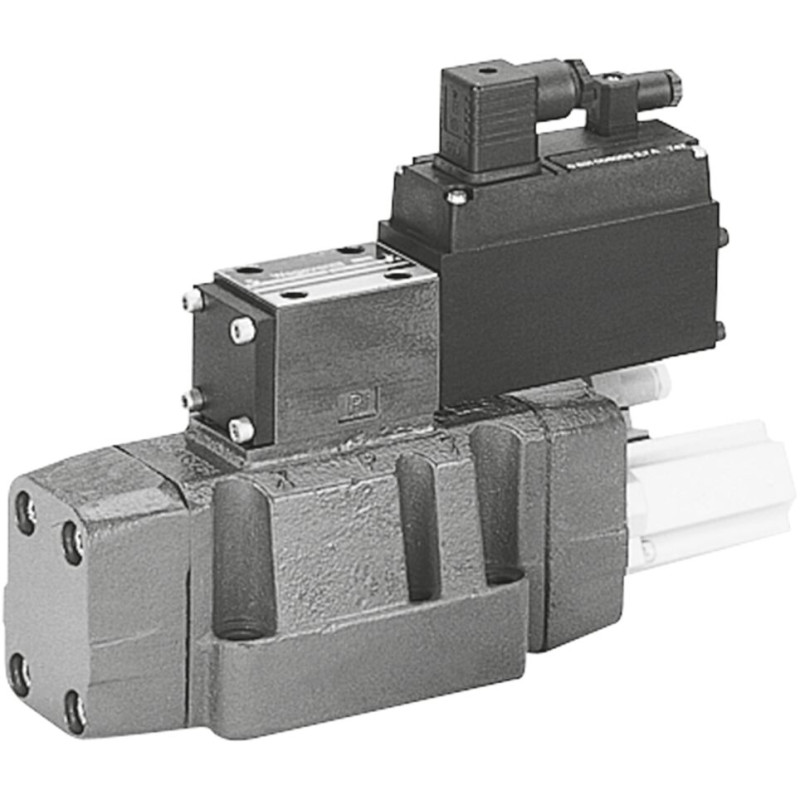

Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol, high accuracy through internal piston position feedback.
Features
- Spool valve
- Pilot-operated
- progressive
- External pilot oil supply, external pilot oil return
