Physical size and weight
| Height |
100
mm |
| Length |
305
mm |
| Max. flow |
450
l/min |
| Net weight |
11.54
kg |
| Nominal flow |
180
l/min |
| Operating pressure, max. |
350
bar |
| Width |
195
mm |
Other properties
| Connection diagram |
ISO 4401-07-07-0-05
|
| ECLASS_13_Classification |
51-45-01-02
|
| Electric connection description |
Connector, 3-pole (2 + PE) according to EN 175301-803, with mating connector
|
| Electrical connector |
Connector, 3-pole (2 + PE)
|
| Hydraulic fluid |
HL,HLP
|
| Product family |
4WRL.E(W)
|
| Seals |
NBR
|
| Size |
16
|
| Spool symbol |
Symbol WZ
|
| Supply voltage |
24 VDC
|
| Type of actuation |
Electrical with external electronics
|
| Type of connection |
Subplate mounting
|
| Valve ports number |
4
|
| Valve position number |
3
|
Description

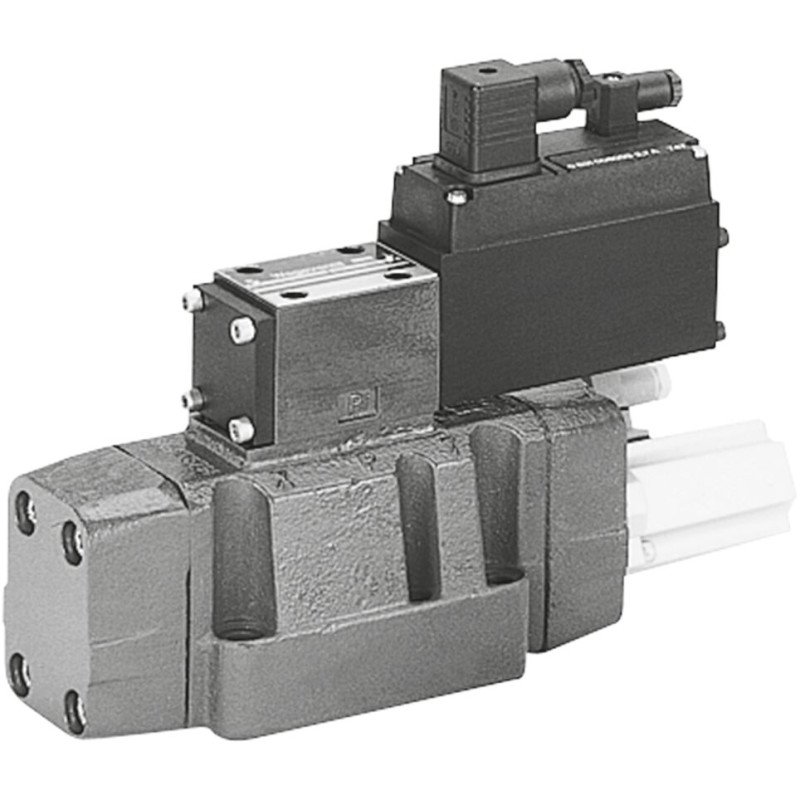

Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol, high accuracy through internal piston position feedback.
Features
- Spool valve
- Pilot-operated
- progressive
- External pilot oil supply, external pilot oil return
