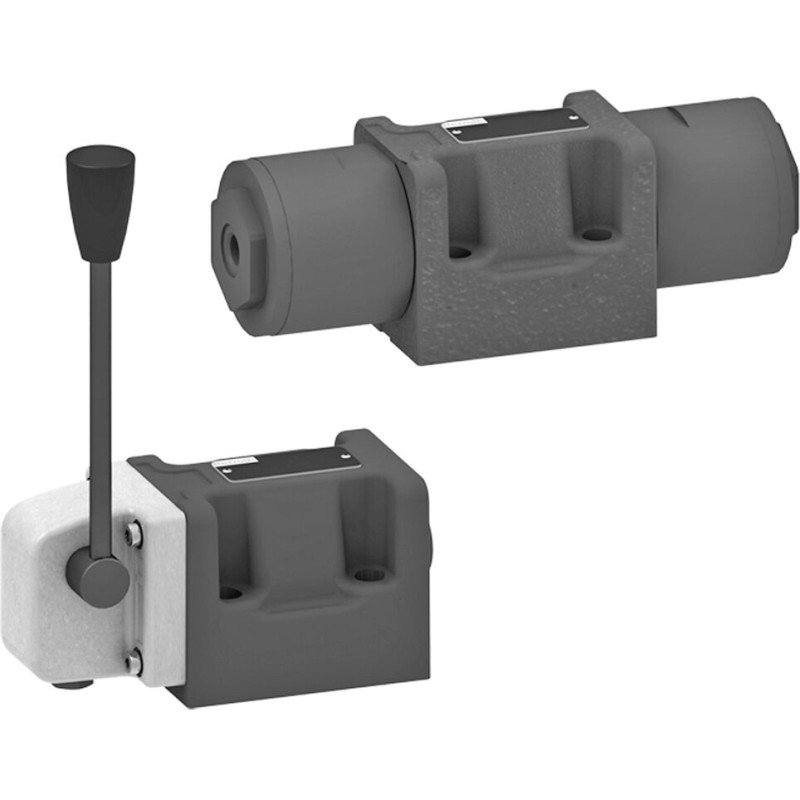

R901362424
4WP10GA5X//M

R901362424
  • Availability: on request
  • Weight: 3.20 KG
  • Part number: R901362424
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901362424
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 3.2 kg
Operating pressure, max. 350 bar
Max. flow 125 l/min
Other properties
Connection diagram ISO 4401-05-04-0-05
ECLASS_13_Classification 51-44-01-02
Product family W.10
Spool symbol Symbol G
Type of connection Subplate mounting
Size 10
Type of actuation with hydraulic actuation
Number of ports 4
Number of switching positions 3
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Seals NBR
Description

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol

Features
  • Spool valve
  • Direct actuated
DataSheet (1)
PDF irectional spool valves, direct operated, with manual and fluidic operation (EN)
CAD (1)
File R901362424 (ALL)
Manual (2)
PDF R901362424 (EN)
PDF 9088900f-009f-4d2a-a198-c1daaf294e99_original (EN)
