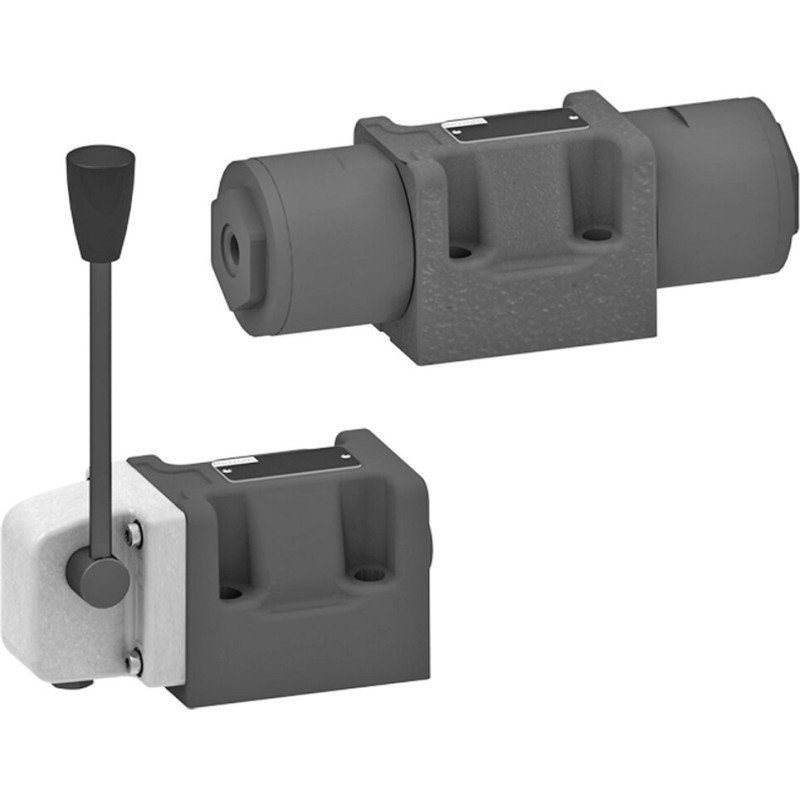

R901362290
4WMM10E5X//V

R901362290
  • Availability: on request
  • Weight: 3.60 KG
  • Part number: R901362290
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901362290
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 3.6 kg
Operating pressure, max. 350 bar
Max. flow 140 l/min
Other properties
Connection diagram ISO 4401-05-04-0-05
ECLASS_13_Classification 51-44-01-02
Product family WMM10
Spool symbol Symbol E
Type of connection Subplate mounting
Size 10
Type of actuation with manual actuation
Number of ports 4
Number of switching positions 3
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
Seals FKM
Description

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol

Features
  • Spool valve
  • Direct actuated
DataSheet (1)
PDF irectional spool valves, direct operated, with manual and fluidic operation (EN)
CAD (1)
File R901362290 (ALL)
Manual (2)
PDF R901362290 (EN)
PDF 9088900f-009f-4d2a-a198-c1daaf294e99_original (EN)
