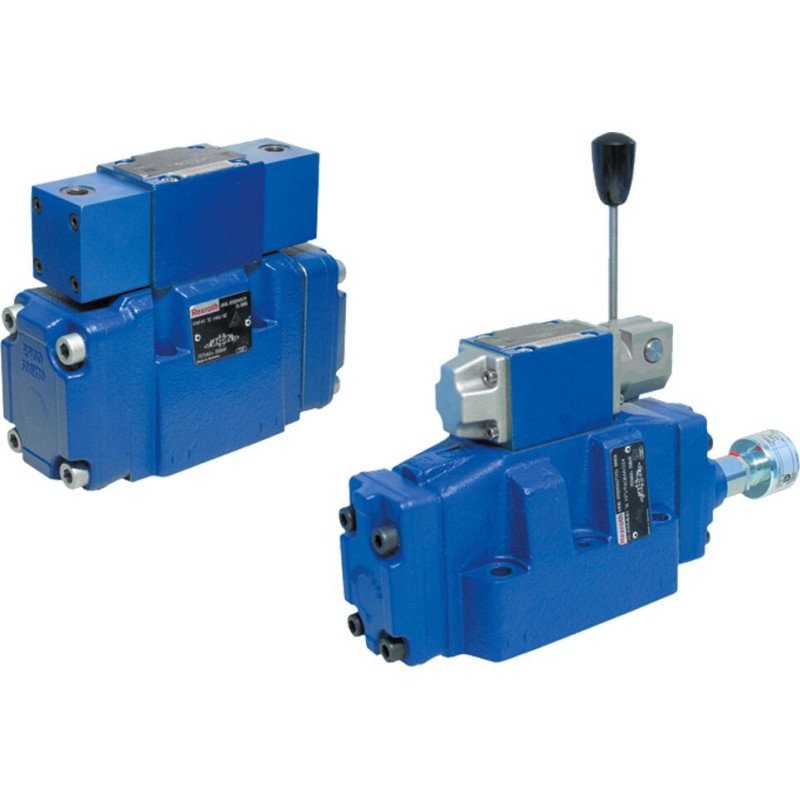

R901295994
4WHH16HD7X/6QMABG24

R901295994
  • Availability: on request
  • Weight: 9.60 KG
  • Part number: R901295994
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901295994
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 9.6 kg
Operating pressure, max. 280 bar
Max. flow 300 l/min
Other properties
Connection diagram ISO 4401-07-07-0-05
ECLASS_13_Classification 51-44-01-02
Product family (H-).W..H
Spool symbol Symbol D
Type of connection Subplate mounting
Size 16
Type of actuation with hydraulic actuation
Number of ports 4
Number of switching positions 2
Supply voltage 24 VDC
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic fluid HL,HLP,HETG
Seals NBR
Description

Industrial hydraulic valve in a high performance range. Reliable control of the oil flow direction according to hydraulic symbol. High accuracy thanks to internal piston position feedback

Features
  • Directional on/off valve
  • Pilot-operated
  • External pilot oil supply, external pilot oil return
  • Monitored spool position "a" and "b"
