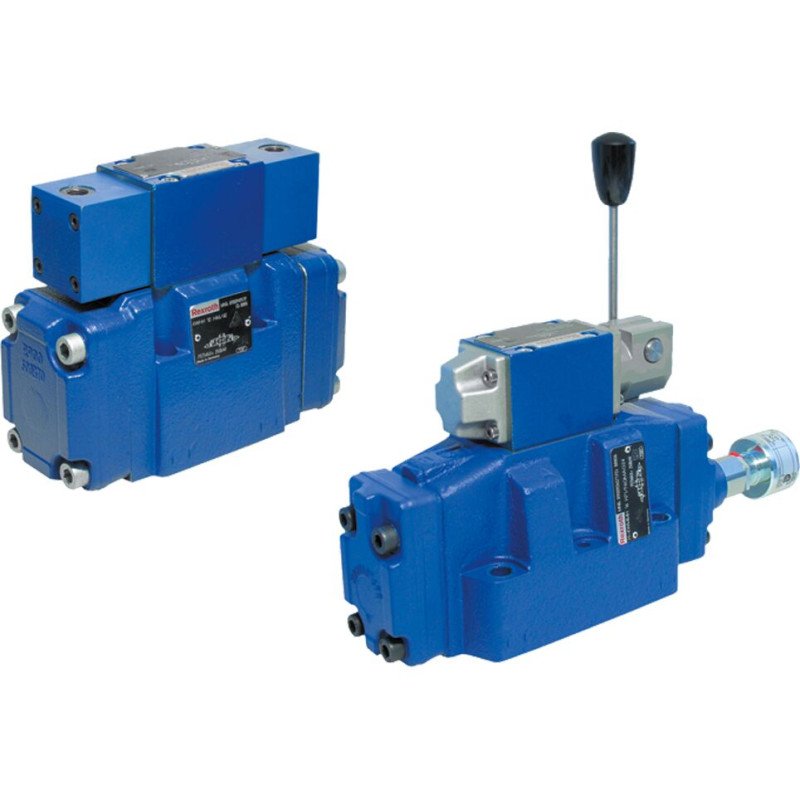

R901494471
4WHH10HD4X/OF6ET/B10V

R901494471
  • Availability: on request
  • Weight: 12.50 KG
  • Part number: R901494471
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901494471
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 12.5 kg
Operating pressure, max. 280 bar
Max. flow 160 l/min
Other properties
Connection diagram ISO 4401-05-05-0-05
ECLASS_13_Classification 51-44-01-02
Product family (H-).W..H
Spool symbol Symbol D
Type of connection Subplate mounting
Size 10
Type of actuation with hydraulic actuation
Number of ports 4
Number of switching positions 2
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic fluid HL,HLP,HETG,HEPG,HEES
Seals FKM
Description

Industrial hydraulic valve in a high performance range. Reliable control of the oil flow direction according to hydraulic symbol. High accuracy thanks to internal piston position feedback

Features
  • Directional on/off valve
  • Pilot-operated
  • Internal pilot oil supply, internal pilot oil return
  • without position switch
Manual (3)
PDF a7f1e739-bd43-4c15-8f0f-d483d3bc6cb2_original (EN)
PDF b2c1fc09-698f-489e-8ab4-58b604a751a4_original (EN)
PDF R901494471 (EN)
CAD (3)
File R901501045 (ALL)
File LEFT(G128,10) (ALL)
File R901131448 (ALL)
Pos Name Material Number
63 DIRECTIONAL SPOOL VALVE
4WH6D5X/OF/V
 R900369715
998 SEAL KIT
WH 6.5X/V
 R900357584
999 SEAL KIT
WH 10.2X/3X/4X/V
 R900306344
