Physical size and weight
| Net weight |
9.84
kg |
| Operating pressure, max. |
280
bar |
| Max. flow |
300
l/min |
Other properties
| Connection diagram |
ISO 4401-07-07-0-05
|
| Product family |
H-4W.H..
|
| ECLASS_13_Classification |
51-44-01-02
|
| Spool symbol |
Symbol R
|
| Type of connection |
Subplate mounting
|
| Size |
16
|
| Type of actuation |
with solenoid actuation
|
| Number of ports |
4
|
| Number of switching positions |
3
|
| Supply voltage |
24 VDC
|
| Electrical connector |
Connector, 3-pole (2 + PE)
|
| Electrical connection description |
Connector 3-pole (2 + PE) according to EN 175301-803
|
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
|
| Seals |
FKM
|
Description

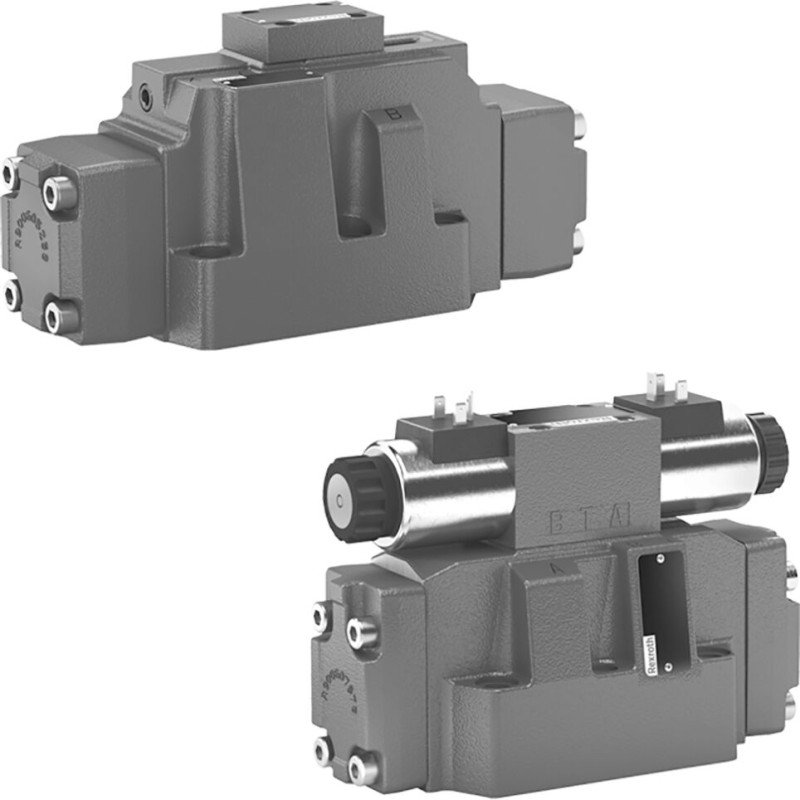

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.
Features
- Spool valve
- Pilot-operated
- Internal pilot oil supply, internal pilot oil return
Manual (2)
R900977776
(EN)
|
Sign in
|
|
21ce2475-6107-4166-afe3-6d9295236a8e_original
(EN)
|
Sign in
|
| Pos |
Name |
Material Number |
| 63 |
DIRECTIONAL SPOOL VALVE
4WE6J6X/EG24N9K4/B10V |
R900926027
|
| 998 |
SEAL KIT
WE 6.6X/E/V |
R900357574
|
| 999 |
SEAL KIT
WH 16.5X/6X/7X/V |
R900306346
|
