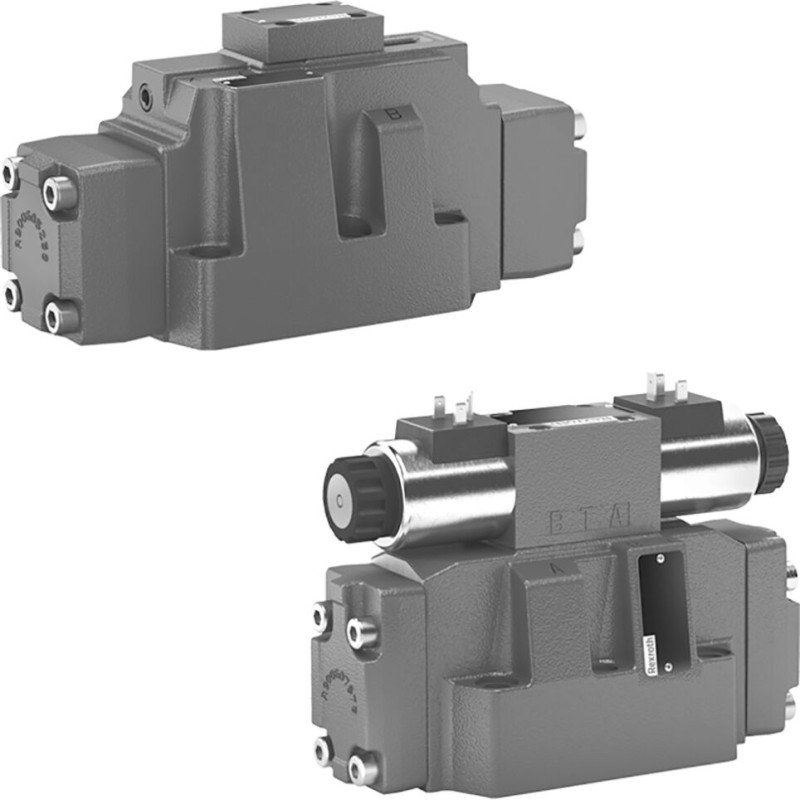

R901108813
4WEH16D7X/6HG24N9ETK4/B10

R901108813
  • Availability: on request
  • Weight: 9.26 KG
  • Part number: R901108813
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901108813
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 9.26 kg
Operating pressure, max. 280 bar
Max. flow 300 l/min
Other properties
Connection diagram ISO 4401-07-07-0-05
Product family H-4W.H..
ECLASS_13_Classification 51-44-01-02
Spool symbol Symbol D
Type of connection Subplate mounting
Size 16
Type of actuation with solenoid actuation
Number of ports 4
Number of switching positions 3
Supply voltage 24 VDC
Electrical connector Connector, 3-pole (2 + PE)
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Seals NBR
Features
  • Spool valve
  • Pilot-operated
Manual (2)
PDF R901108813 (EN)
PDF 21ce2475-6107-4166-afe3-6d9295236a8e_original (EN)
Name Material Number
3P Z4 M GR SPEZ. R901017010
3P Z4 M SW SPEZ R901017011
3P Z5L M 12-240V SPEZ R901017022
