Physical size and weight
| Net weight |
2.24
kg |
| Operating pressure, max. |
350
bar |
Other properties
| Connection diagram |
ISO 4401-03-02-0-05
|
| Product family |
WE 6…XN
|
| ECLASS_13_Classification |
51-44-01-02
|
| Spool symbol |
Symbol J
|
| Type of connection |
Subplate mounting
|
| Size |
6
|
| Type of actuation |
with solenoid actuation
|
| Number of ports |
4
|
| Number of switching positions |
2
|
| Supply voltage |
24 VDC
|
| Electrical connector |
Connector, 3-pole (2 + PE)
|
| Electrical connection description |
Connector 3-pole (2 + PE) according to EN 175301-803
|
| Conformity description |
CCC – Ex TR type examination certificate,CCC – Ex QAR (QM system),ATEX – Directive 2014/34/EC conformity assessment (in-house),ATEX – Directive 2014/34/EU
|
| Conformity |
CCC-Ex,ATEX
|
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD,HFC
|
| Seals |
NBR
|
Description

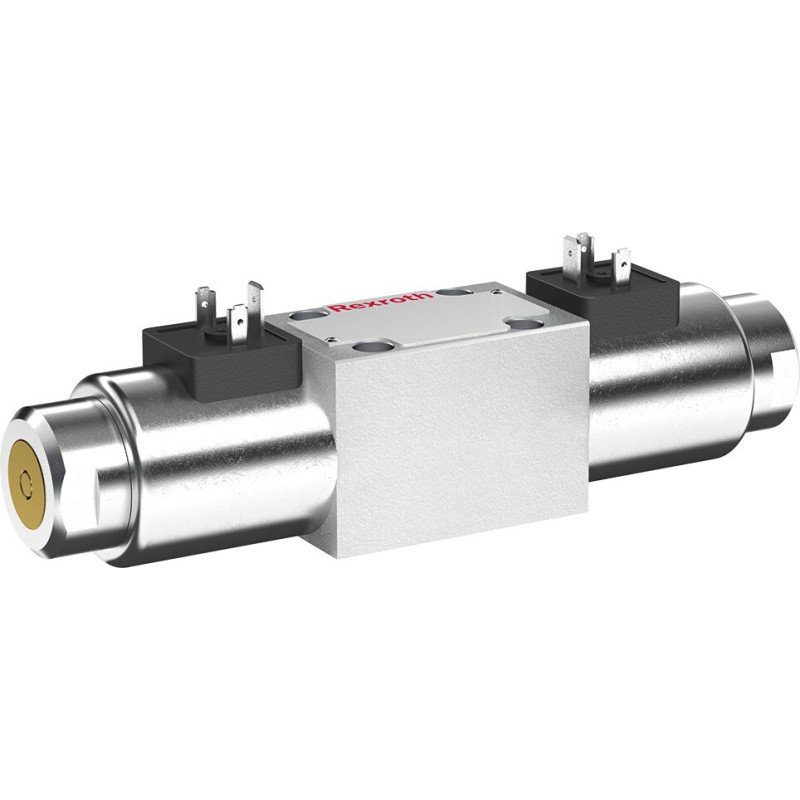

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol
Features
- Spool valve
- Direct actuated
- With concealed auxiliary actuation
