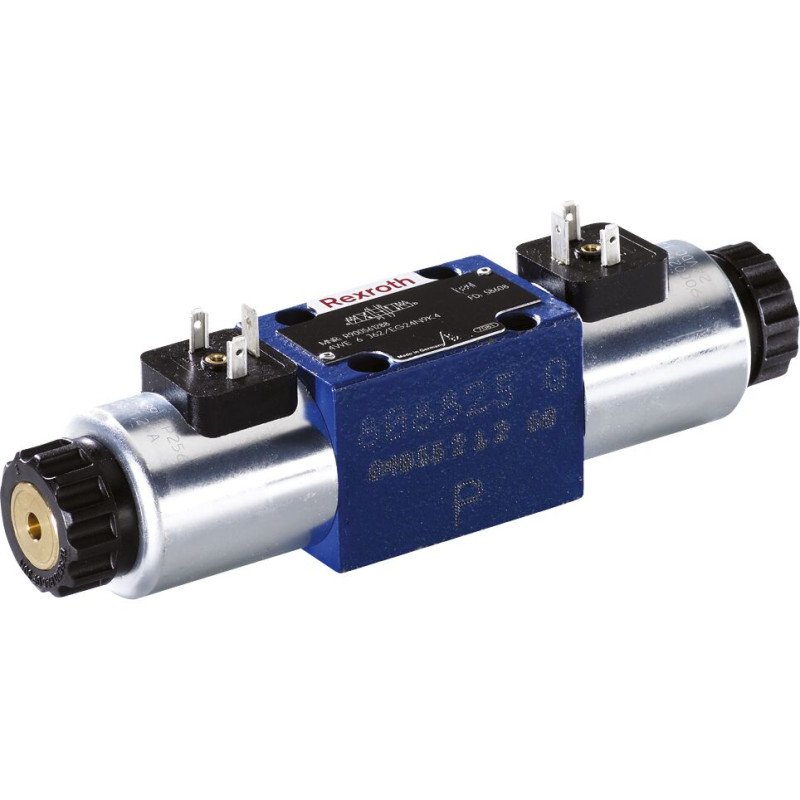

R901226074
4WE6D73-6X/EG24N9K4QMAG24/A12

R901226074
  • Availability: on request
  • Weight: 1.62 KG
  • Part number: R901226074
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901226074
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 1.62 kg
Operating pressure, max. 350 bar
Max. flow 60 l/min
Other properties
Connection diagram ISO 4401-03-02-0-05
ECLASS_13_Classification 51-44-01-02
Product family WE6../E
Spool symbol Symbol D73
Type of connection Subplate mounting
Size 6
Type of actuation with solenoid actuation
Number of ports 4
Number of switching positions 2
Supply voltage 24 VDC
Electrical connector Connector, 3-pole (2 + PE)
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Seals NBR
Features
  • Spool valve
  • Direct actuated
  • With concealed auxiliary actuation
Manual (3)
PDF R901226074 (EN)
PDF R901226074 (EN)
PDF On/off valves with spool position monitoring (EN)
Pos Name Material Number
157 SOLENOID COIL
45-K4___-30G24___04
 R901370939
998 NUT
GZ45-01 BG
 R900068604
999 SEAL KIT
06A-MR/RN 5FACH
 R961000837
