Physical size and weight
| Net weight |
1.66
kg |
| Operating pressure, max. |
350
bar |
| Max. flow |
70
l/min |
Other properties
| Connection diagram |
ISO 4401-03-02-0-05
|
| ECLASS_13_Classification |
51-44-01-02
|
| Product family |
WE6../E
|
| Spool symbol |
Symbol D
|
| Size |
6
|
| Type of actuation |
with solenoid actuation
|
| Number of ports |
4
|
| Number of switching positions |
2
|
| Supply voltage |
24 VDC
|
| Electrical connector |
Connector, 4-pole, M12 x 1, coding A
|
| Electrical connection description |
Connector, 4-pole, M12 x 1 according to EN 61076-2-101, with LED and suppressor diode, pin assignment according to DESINA
|
| Hydraulic fluid |
HL,HLP,HLPD,HVLP,HVLPD,HFC
|
| Seals |
NBR
|
Description

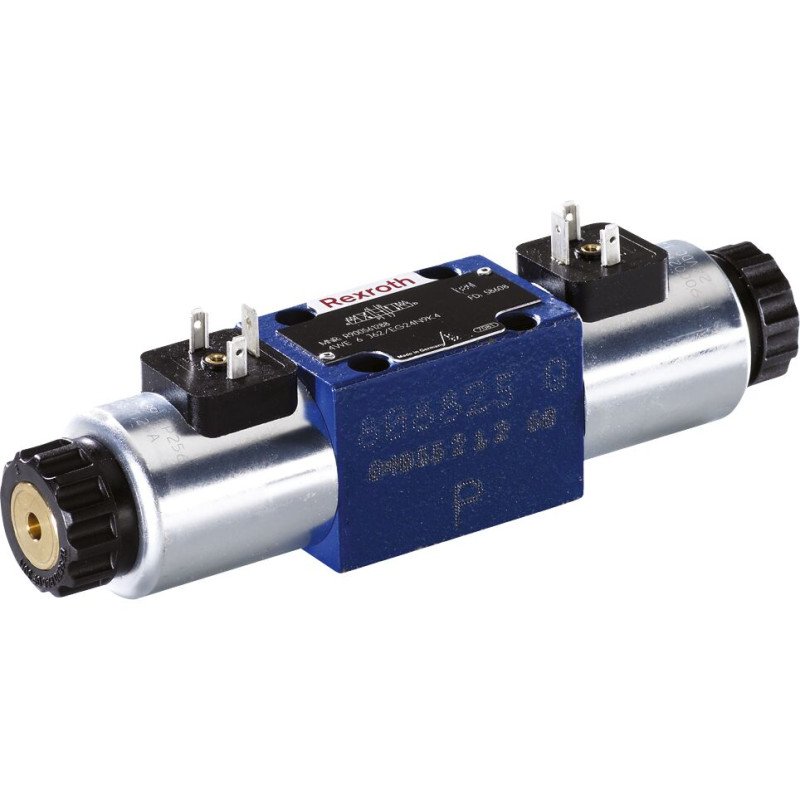

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.
Features
- Spool valve
- Direct actuated
