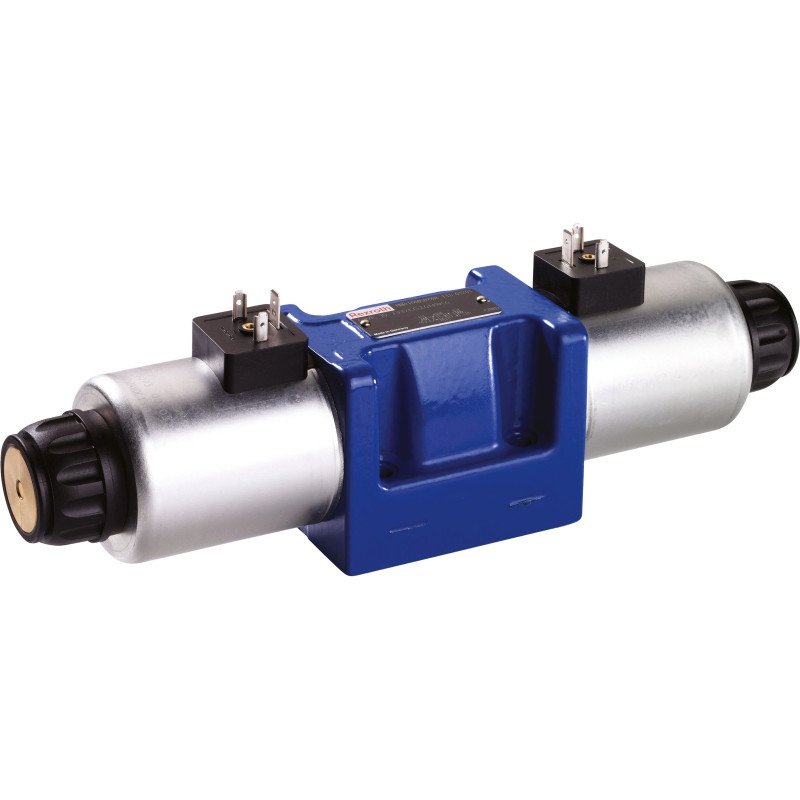

R901381050
4WE10J5X/EG110N9DL/M

R901381050
  • Availability: on request
  • Weight: 5.50 KG
  • Part number: R901381050
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901381050
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 5.5 kg
Operating pressure, max. 350 bar
Max. flow 150 l/min
Other properties
Connection diagram ISO 4401-05-04-0-05
Product family WE10../E
ECLASS_13_Classification 51-44-01-02
Spool symbol Symbol J
Type of connection Subplate mounting
Size 10
Type of actuation with solenoid actuation
Number of ports 4
Number of switching positions 3
Supply voltage 110 VDC
Electrical connector Cable gland
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Conformity description UKCA – Low-Voltage Directive SI2016/1091,CE – Low-Voltage Directive 2014/35/EU
Conformity UKCA,CE
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Seals NBR
Description

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.

Features
  • Spool valve
  • Direct actuated
Manual (2)
PDF Directional spool valves, direct operated, with solenoid actuation (EN)
PDF R901381050 (EN)
Pos Name Material Number
157 SOLENOID COIL
63-DK3__-40G110__02
 R901285950
998 NUT
63 N9-N0-3K+O-RING ET
 R961006895
9991 ACTUATOR TUBE
63S-N9-02__210V_-D-M-O*ET
 R961015698
