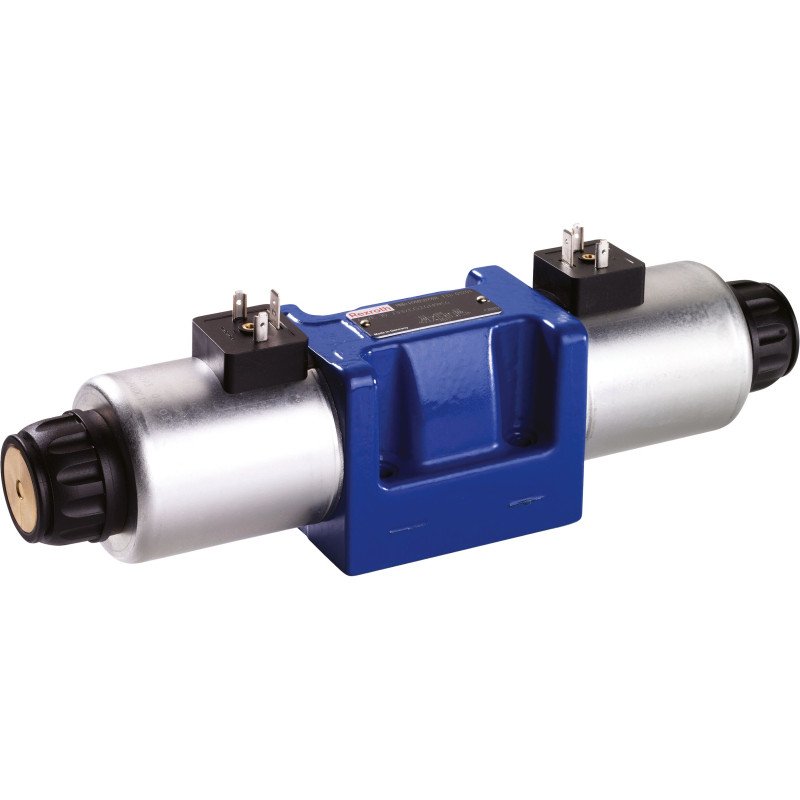

R901556625
4WE10HB5X/EW120N9K4/M

R901556625
  • Availability: on request
  • Weight: 3.27 KG
  • Part number: R901556625
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901556625
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 3.268 kg
Operating pressure, max. 350 bar
Max. flow 66 l/min
Other properties
Connection diagram ISO 4401-05-04-0-05
ECLASS_13_Classification 51-44-01-02
Product family WE10../E
Spool symbol Symbol HB
Type of connection Subplate mounting
Size 10
Type of actuation with solenoid actuation
Number of ports 4
Number of switching positions 2
Supply voltage 120 VAC 50/60Hz
Electrical connector Connector, 3-pole (2 + PE)
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Conformity description UKCA – Low-Voltage Directive SI2016/1091,CE – Low-Voltage Directive 2014/35/EU
Conformity UKCA,CE
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HFC
Seals NBR
Description

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol

Manual (2)
PDF Directional spool valves, direct operated, with solenoid actuation (EN)
PDF R901556625 (EN)
Pos Name Material Number
157 SOLENOID COIL
65-K4 - W120 A1 UR
 R901462264
998 NUT
WZ65O.N.,M.VN. BG
 R900835967
9990 LOCKING SET
.WE10-5X/E_H*ET
 R961015694
9991 ACTUATOR TUBE
WZ65-.-LM.VN.*ET
 R961015702
