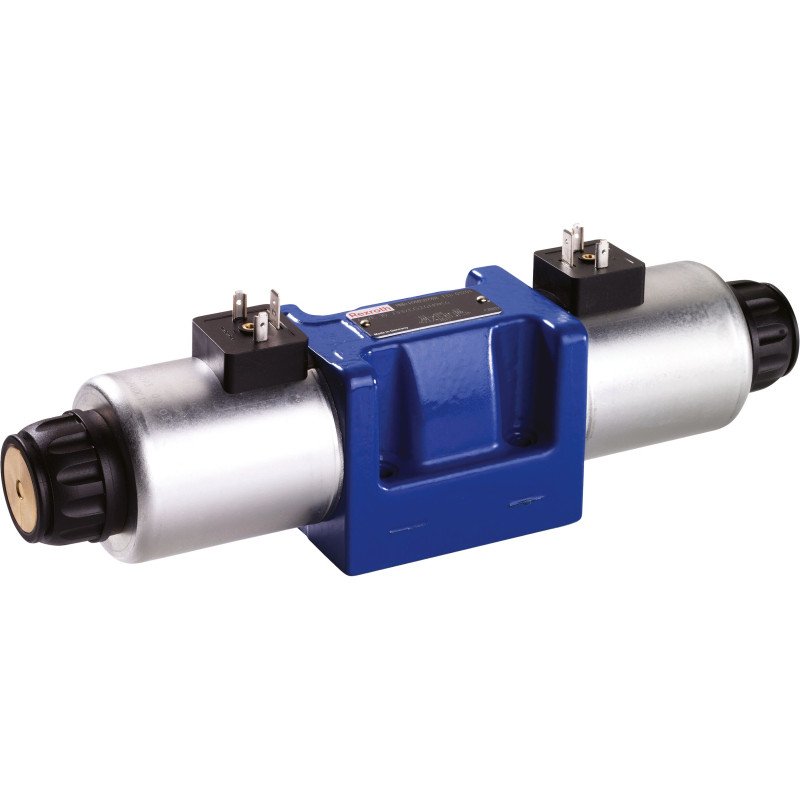

R901350453
4WE10EA5X/EG24N9K4/V

R901350453
  • Availability: on request
  • Weight: 4.10 KG
  • Part number: R901350453
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 0.

R901350453
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 4.1 kg
Operating pressure, max. 350 bar
Max. flow 150 l/min
Other properties
Connection diagram ISO 4401-05-04-0-05
ECLASS_13_Classification 51-44-01-02
Product family WE10../E
Spool symbol Symbol EA
Type of connection Subplate mounting
Size 10
Type of actuation with solenoid actuation
Number of ports 4
Number of switching positions 2
Supply voltage 24 VDC
Electrical connector Connector, 3-pole (2 + PE)
Electrical connection description Connector 3-pole (2 + PE) according to EN 175301-803
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
Seals FKM
Description

Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol.

Features
  • Spool valve
  • Direct actuated
Manual (2)
PDF Directional spool valves, direct operated, with solenoid actuation (EN)
PDF R901350453 (EN)
Pos Name Material Number
157 SOLENOID COIL
63-K4___-40G24___02
 R901258093
998 NUT
63 N9-N0-3K+O-RING ET
 R961006895
999 SEAL KIT
WE 10.5X/E/V
 R961006887
9990 LOCKING SET
.WE10-5X/E_H*ET
 R961015694
9991 ACTUATOR TUBE
63S-N9-02__210V_-D-M-O*ET
 R961015698
Name Material Number
3P Z4 M GR SPEZ. R901017010
3P Z4 M SW SPEZ R901017011
3P Z5L M 12-240V SPEZ R901017022
