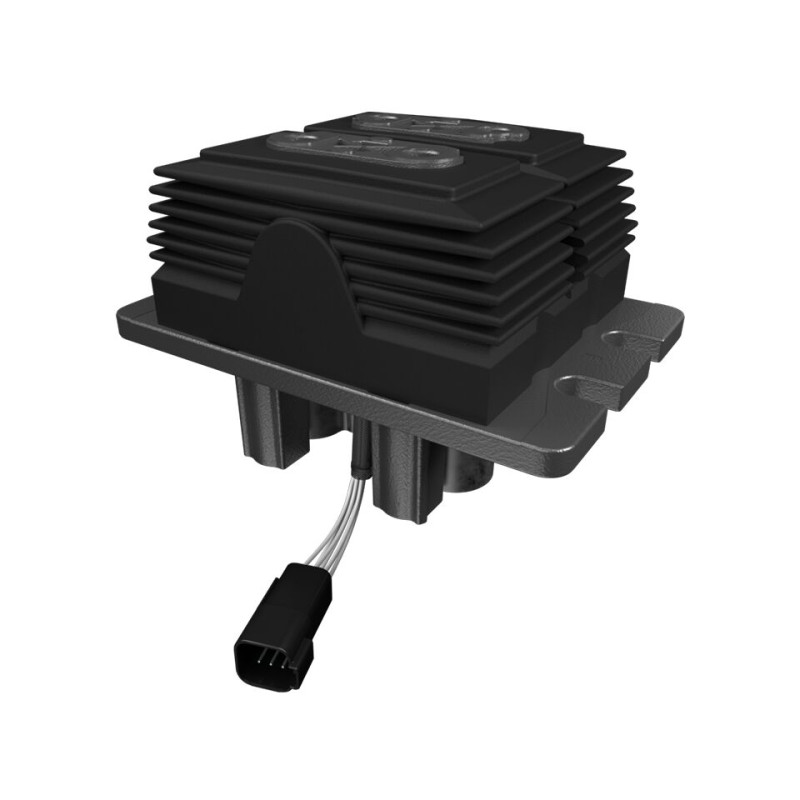

R908354604
4 THESW5 NRZ-40/5

R908354604
  • Availability: on request
  • Weight: 2.60 KG
  • Part number: R908354604
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 1.

R908354604
Physical size and weight
Net weight 2.6 kg
Other properties
Connector base DT04-06P-CE03
Curve axis 1 (machine axis) 12° (6 - 12.5 N.m)
Damping system With integrated damping system
Electronic output Analog _ PLd-capable
EMC certification Compliance with EMC Directive 2014/30/EU
Product family 4THE5NR PWM
Series Series x41
Voltage supply 5V controlled
Description

Specially designed for the equipment of mobile machines. Reliable, light and robust mechanism. Actuator ergonomics comparable with hydraulic foot devices. Easily accessible pedals fixing. Single mounting plate for two pedals. Excellent protection of the electronic part. Contactless hall effect sensors.

Features
  • Reliable, lightweight and robust mechanism for applications.
DataSheet (2)
PDF Electronic control device for single foot pedal 2THE5R (EN)
PDF Electronic control device for double foot pedal with dampening 4THE5NR (EN)
OperatingInstructions (1)
PDF Electronic control devices for foot pedal (EN)
