Other properties
| CAN baud rate |
250 Kb/s
|
| CAN protocol |
J1939 Enhanced (CheckSum & counter integrated in the message)
|
| CAN source address |
0x35
|
| CAN update time |
20 ms
|
| Connector base |
DT04-06P-CE03
|
| Control |
E
|
| Curve axis 1 (machine axis) |
12° (6 - 12.5 N.m)
|
| Damping system |
With integrated damping system
|
| Electronic output |
CAN-PLd-capable
|
| EMC certification |
Compliance with EMC Directive 2014/30/EU
|
| Product family |
4THE5NR CAN
|
| Series |
Series x41
|
| Type |
TH
|
| Voltage supply |
12-24V battery voltage
|

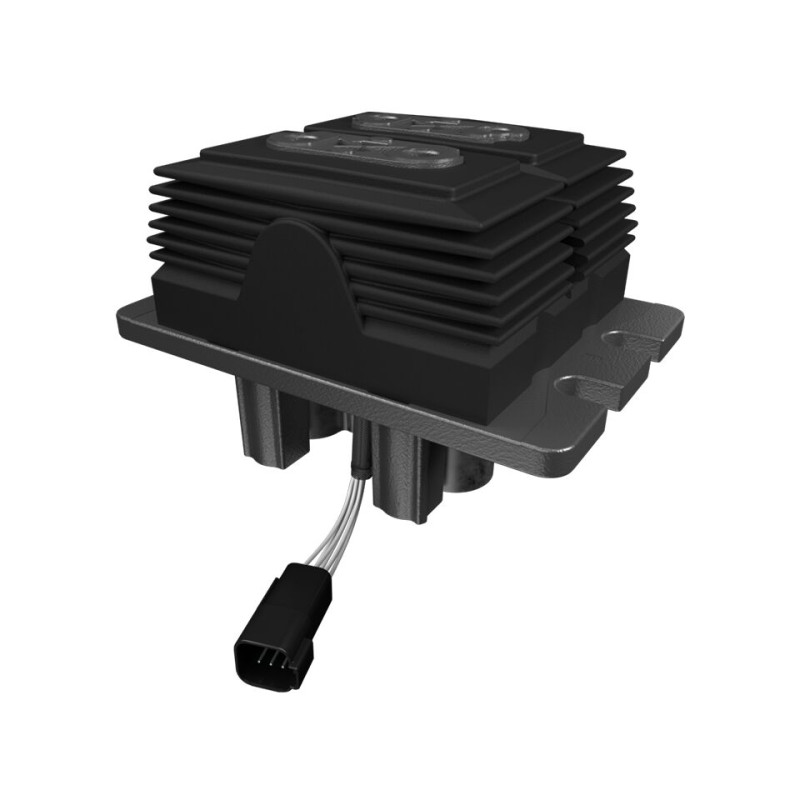

Description
Specially designed for the equipment of mobile machines.
Reliable, light and robust mechanism.
Actuator ergonomics comparable with hydraulic foot
devices.
Easily accessible pedals fixing.
Single mounting plate for two pedals.
Excellent protection of the electronic part.
Contactless hall effect sensors.
Features
- Reliable, lightweight and robust mechanism for applications.
