Other properties
| Curve axis 1 (machine axis) |
12° (6 - 12.5 N.m)
|
| Product family |
4THE5NR CAN
|
| Electronic output |
CAN-PLc-capable
|
| CAN protocol |
J1939 standard
|
| CAN baud rate |
250 Kb/s
|
| CAN update time |
20 ms
|
| CAN source address |
0x8D
|
| Connector base |
DT04-06P-CE03
|
| Series |
Series x41
|
| Damping system |
With integrated damping system
|
| EMC certification |
Compliance with EMC Directive 2014/30/EU
|
| Voltage supply |
12-24V battery voltage
|
| Type |
TH
|
| Control |
E
|

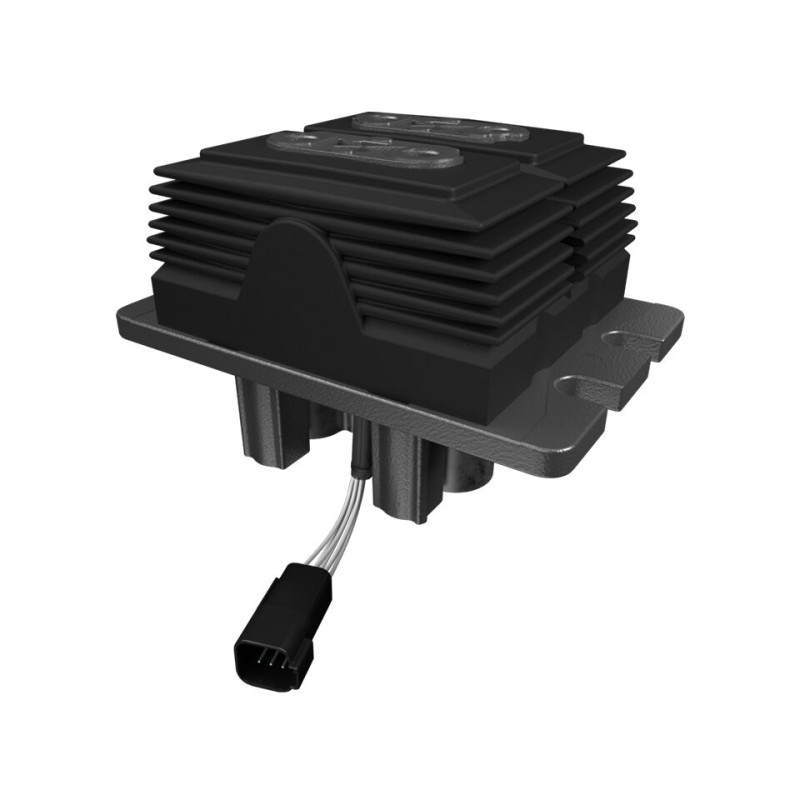

Description
Specially designed for the equipment of mobile machines.
Reliable, light and robust mechanism.
Actuator ergonomics comparable with hydraulic foot
devices.
Easily accessible pedals fixing.
Single mounting plate for two pedals.
Excellent protection of the electronic part.
Contactless hall effect sensors.
Features
- Reliable, lightweight and robust mechanism for applications.
