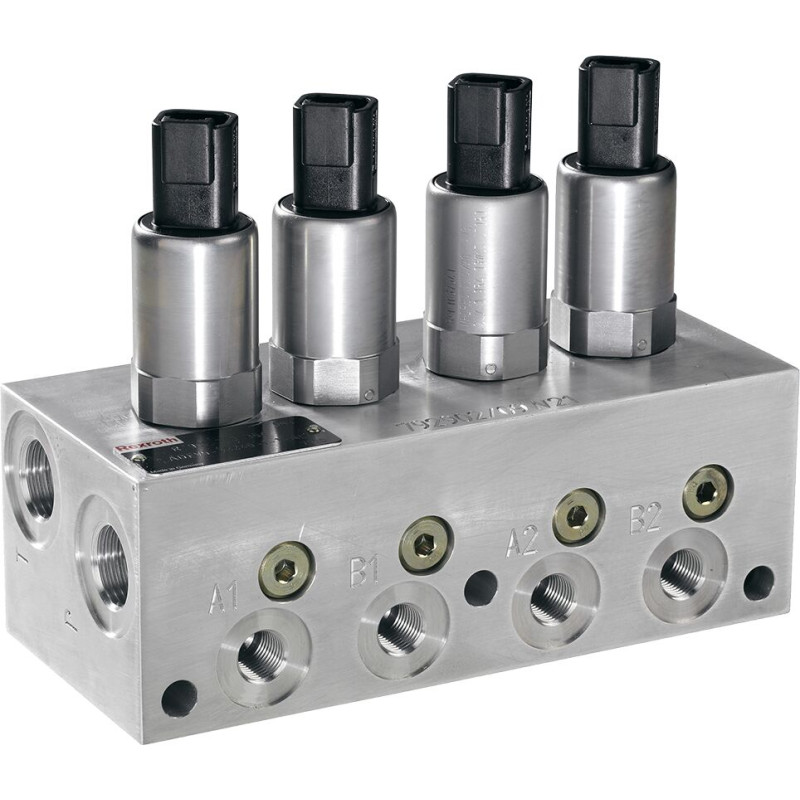

R901434345
HICFP04-2A-AL-1X/FTDR30G24N0K40V

R901434345
  • Availability: on request
  • Weight: 1.30 KG
  • Part number: R901434345
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R901434345
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 5 l/min
Maximum control pressure 30 bar
Net weight 1.3 kg
Nominal flow 5 l/min
Operating pressure, max. 100 bar
Other properties
Cavity M22x1,5
Coil integrated Integrated coil
Direct - Pilot Direct acting
Electrical connector Deutsch DT04-2P
Hydraulic fluid HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG
Normal position Normally closed
Ports Threaded connection, flat-sealing according to DIN 3852-2
Ports number 6
Product family HICFP
Product family Remote control plate
Product family classification Remote control plate
Product family type HICFP
Product type HICFP
Sealing material FKM
Supply voltage 24 V DC
Type of connection Threaded connection
Features
  • Maximum operating pressure 100 bar (1450 psi)
  • Maximum flow 5 l/min (1,3 gpm)
  • Cavity M22x1,5
DataSheet (1)
PDF Remote control plate, type HICFP (EN)
