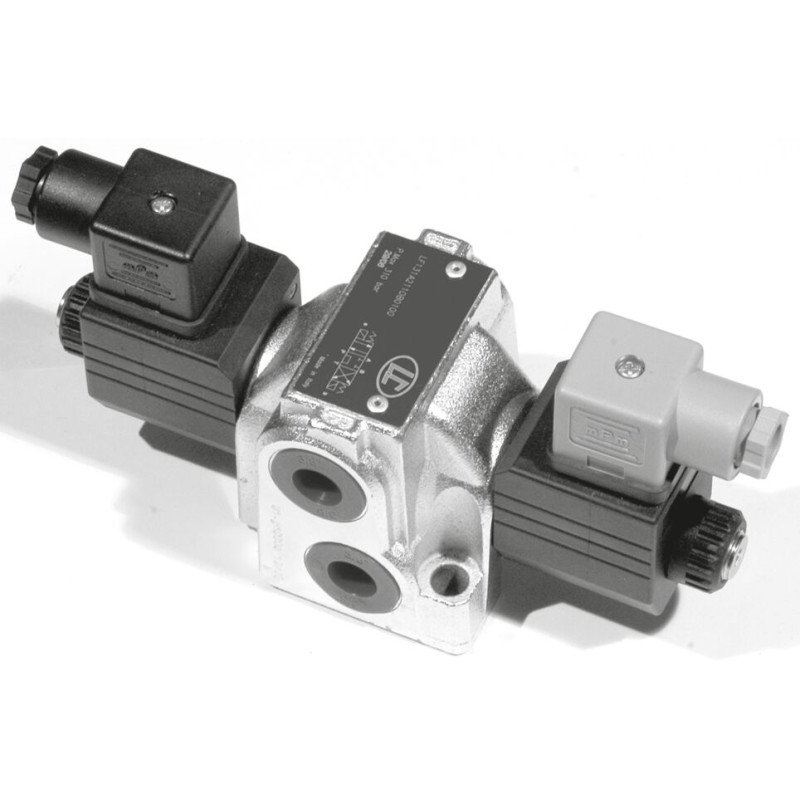

R930057574
LF131E201OC0700-E.LC1F-Z-3/8G-E201-24DC&

R930057574
  • Availability: On request
  • Weight: 1.84 KG
  • Part number: R930057574
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930057574
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 35 l/min
Net weight 1.84 kg
Nominal flow 35 l/min
Operating pressure, max. 310 bar
Other properties
Coil integrated Integrated coil
Direct - Pilot Direct acting
Electrical connector Deutsch DT04-2P
Hydraulic fluid HL,HLP
Ports G 3/8
Ports number 4
Positions 3
Product family LC1F-Z
Product family Stand alone 4/3, 4/2 direct acting directional valve
Product family classification 4/3 - 4/2 Directional valve elements
Product family type LF1
Product type LC1F-Z
Sealing material NBR
Spool Poppet Spool type
Supply voltage 24 V DC
Type of connection Threaded connection
Features
  • Maximum operating pressure 310 bar (4495 psi)
  • Maximum flow 35 l/min (9,3 gpm)
  • Port: G 3/8
  • Spool type
  • Direct operated
