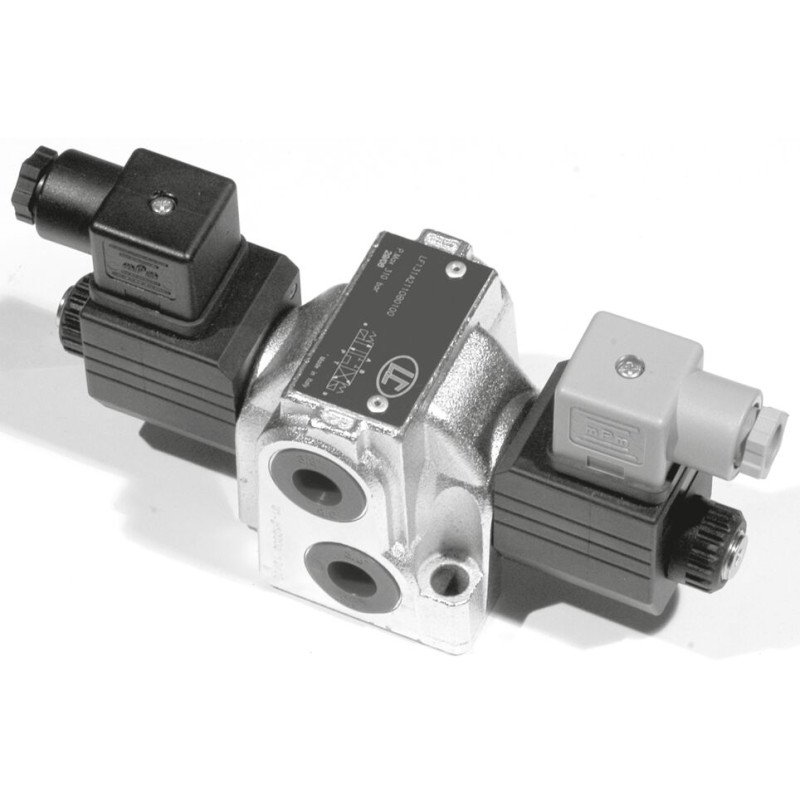

R930055458
LF131E201OC010F-E.LC1F-Z-3/8G-E201-24DC&

R930055458
  • Availability: on request
  • Weight: 1.92 KG
  • Part number: R930055458
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930055458
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 1.915 kg
Operating pressure, max. 310 bar
Max. flow 35 l/min
Nominal flow 35 l/min
Other properties
Product family classification 4/3 - 4/2 Directional valve elements
Product family type LF1
Product family LC1F-Z
Ports number 4
Positions 3
Spool Poppet Spool type
Type of connection Threaded connection
Direct - Pilot Direct acting
Coil integrated Integrated coil
Supply voltage 24 V DC
Electrical connector DIN EN 175301-803
Ports G 3/8
Manual override Screw type manual override
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Stand alone 4/3, 4/2 direct acting directional valve
Product type LC1F-Z
Features
  • Maximum operating pressure 310 bar (4495 psi)
  • Maximum flow 35 l/min (9,3 gpm)
  • Port: G 3/8
  • Spool type
  • Direct operated
Manual (1)
PDF Stand alone 4/3, 4/2 direct acting directional valve – LF1_1… (LC1F-Z) (EN)
