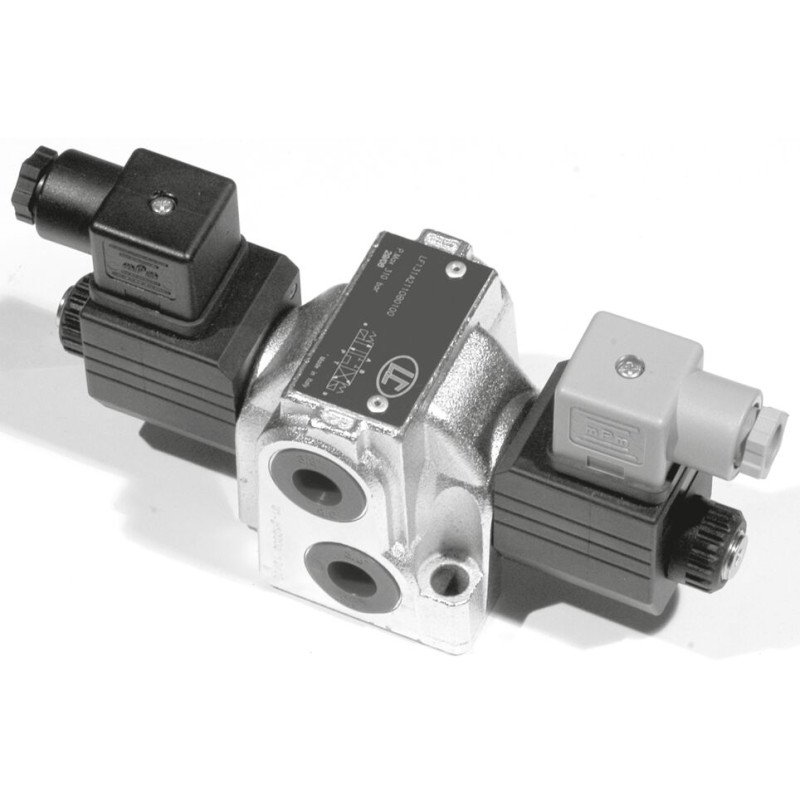

R930052023
LF131B201AC0700-E.LC1F-Z-3/8G-B201-27DC&

R930052023
  • Availability: on request
  • Weight: 1.82 KG
  • Part number: R930052023
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930052023
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 1.82 kg
Operating pressure, max. 310 bar
Max. flow 35 l/min
Nominal flow 35 l/min
Other properties
Product family classification 4/3 - 4/2 Directional valve elements
Product family type LF1
Product family LC1F-Z
Ports number 4
Positions 3
Spool Poppet Spool type
Type of connection Threaded connection
Direct - Pilot Direct acting
Coil integrated Integrated coil
Supply voltage 27 V DC
Electrical connector Deutsch DT04-2P
Ports G 3/8
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Stand alone 4/3, 4/2 direct acting directional valve
Product type LC1F-Z
Features
  • Maximum operating pressure 310 bar (4495 psi)
  • Maximum flow 35 l/min (9,3 gpm)
  • Port: G 3/8
  • Spool type
  • Direct operated
Manual (1)
PDF Stand alone 4/3, 4/2 direct acting directional valve – LF1_1… (LC1F-Z) (EN)
