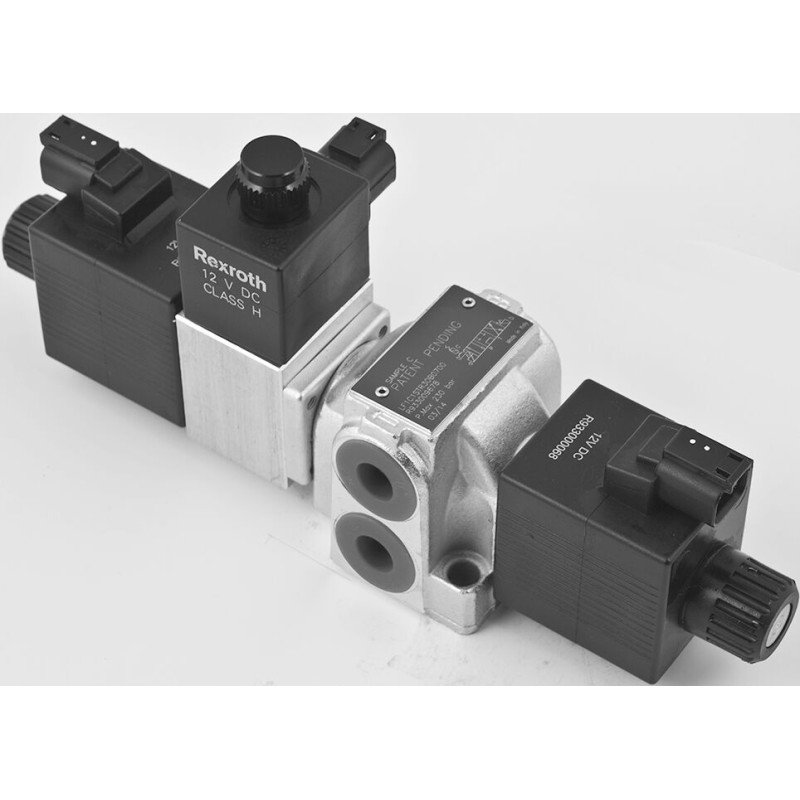

R930056456
LF121STR3OB0100-E.LC1B-1/2G-DZ-STR3-12D&

R930056456
  • Availability: on request
  • Weight: 3.08 KG
  • Part number: R930056456
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930056456
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 50 l/min
Net weight 3.075 kg
Nominal flow 50 l/min
Operating pressure, max. 210 bar
Other properties
Coil integrated Integrated coil
Direct - Pilot Direct acting
Electrical connector DIN EN 175301-803
Hydraulic fluid HL,HLP
Ports G 1/2
Ports number 4
Positions 3
Product family SMV2.0
Product family Steering mode selection valve
Product family classification Steering mode selection valve with electromechanical detent
Product family type LF1_1STR3
Product type SMV2.0
Sealing material NBR
Spool Poppet Spool type
Supply voltage 12 V DC
Type of connection Threaded connection
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 50 l/min (13 gpm)
  • Port: G 1/2
  • Spool type
  • Direct operated
