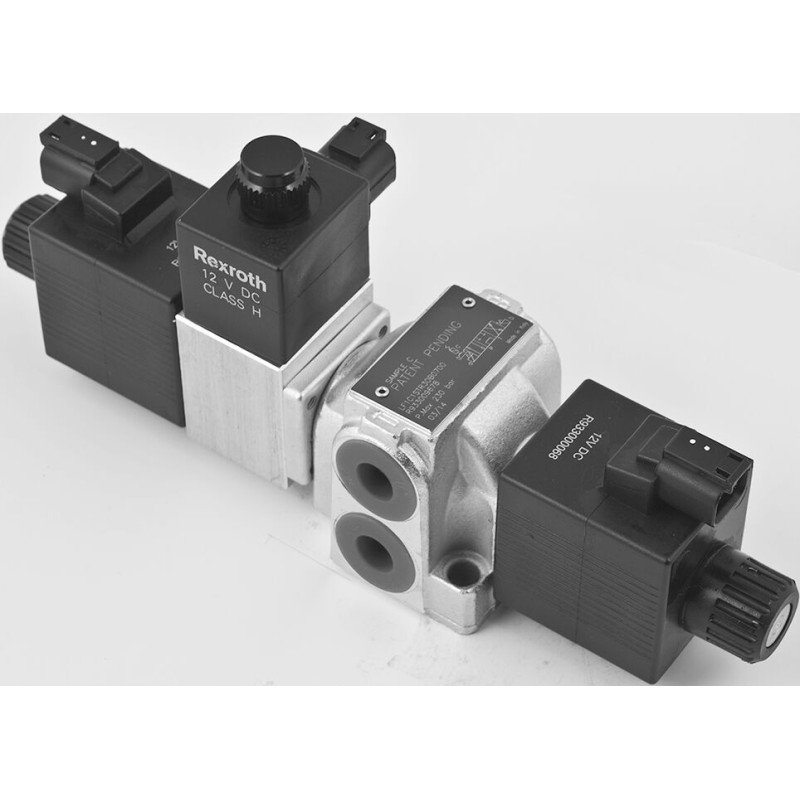

R930060025
LF121STR3AD0700-E.LC1B-1/2G-DZ-STR3-13D&

R930060025
  • Availability: on request
  • Weight: 3.08 KG
  • Part number: R930060025
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930060025
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 3.075 kg
Operating pressure, max. 210 bar
Max. flow 50 l/min
Nominal flow 50 l/min
Other properties
Product family classification Steering mode selection valve with electromechanical detent
Product family type LF1_1STR3
Product family SMV2.0
Ports number 4
Positions 3
Spool Poppet Spool type
Type of connection Threaded connection
Direct - Pilot Direct acting
Coil integrated Integrated coil
Supply voltage 13 V DC
Electrical connector Deutsch DT04-2P
Ports G 1/2
Sealing material NBR
Hydraulic fluid HL,HLP
Product family Steering mode selection valve
Product type SMV2.0
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 50 l/min (13 gpm)
  • Port: G 1/2
  • Spool type
  • Direct operated
Manual (1)
PDF Steering mode selection valve with electromechanical detent – LF1_1STR3… (SMV2.0) (EN)
