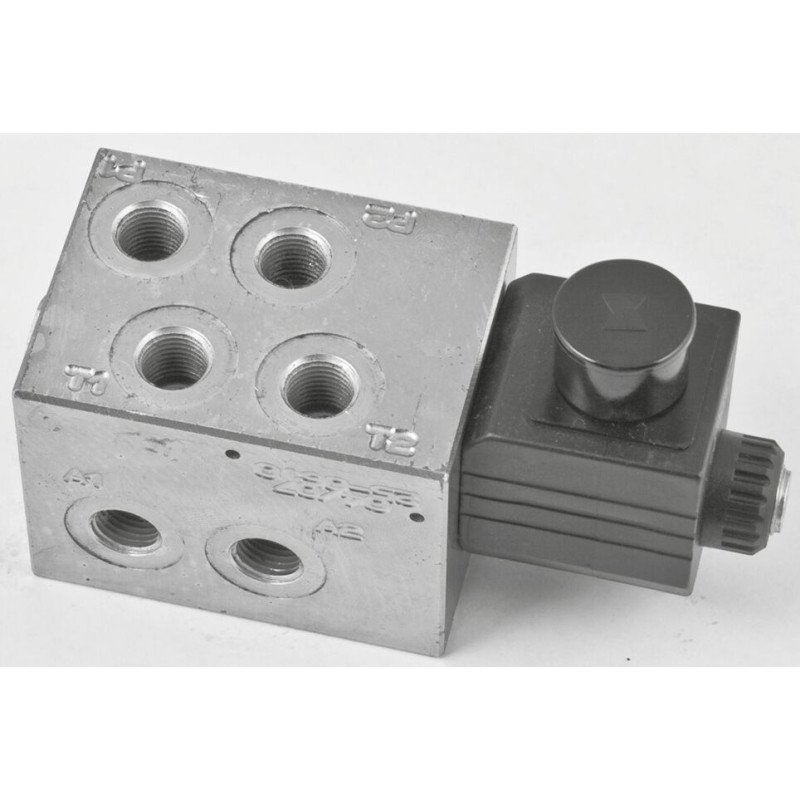

R930059671
L7652A0BYIOB010-SE.VS570-1/4G-A-BY-DI-1&

R930059671
  • Availability: on request
  • Weight: 6.99 KG
  • Part number: R930059671
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930059671
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Max. flow 10 l/min
Net weight 6.99 kg
Nominal flow 10 l/min
Operating pressure, max. 210 bar
Other properties
Coil integrated Integrated coil
Direct - Pilot Direct acting
Drain type Internal drain
Electrical connector DIN 43650 – EN 175301-803
Hydraulic fluid HL,HLP
Ports G 1/4
Ports number 8
Positions 2
Product family VS57X
Product family 6 ways
Product family classification 8/2 ways/positions flow diverters
Product family type VS570
Product type VS57X
Sealing material NBR
Spool Poppet Spool type
Supply voltage 12 V DC
Type of connection Threaded connection
Features
  • Maximum operating pressure 210 bar (3000 psi)
  • Maximum flow 10 l/min (3 gpm)
  • Size 2
  • Ports: G 1/4
