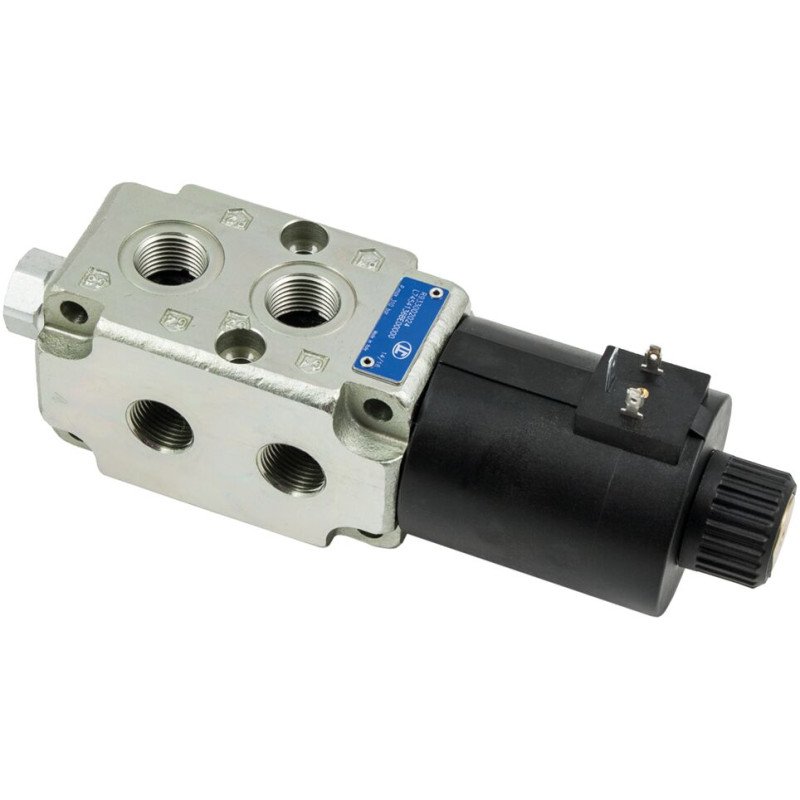

R930054735
L74541F6BIOC010-S.VS281F1-1/2G-DZ-P1C1N&

R930054735
  • Availability: on request
  • Weight: 3.98 KG
  • Part number: R930054735
  • Manufacturer: Bosch Rexroth

Price:

remove add

The minimum order quantity for the product is 5.

R930054735
Quantity discount

The price will be automatically updated once added to the cart.

Physical size and weight
Net weight 3.98 kg
Operating pressure, max. 310 bar
Max. flow 90 l/min
Nominal flow 90 l/min
Other properties
Product family classification 6 to 14/2 ways/positions bankable flow diverters flangeable
Product family type VS281F
Product family VS280F
Ports number 6
Positions 2
Spool Poppet Spool type
Type of connection Threaded connection
Direct - Pilot Direct acting
Coil integrated Integrated coil
Supply voltage 24 V DC
Electrical connector DIN 43650 – EN 175301-803
Ports G 1/2
Manual override Screw type manual override
Drain type Internal drain
Sealing material NBR
Hydraulic fluid HL,HLP
Product family 6 ways
Product type VS280F
Features
  • Maximum operating pressure 310 bar (4495 psi)
  • Maximum flow 90 l/min (24 gpm)
  • Size 10
  • Ports: G 1/2
Manual (1)
PDF 6 to14/2 ways/positions bankable flow diverters flangeable – L745... (VS281F-VS285F-VS286F-VS287F-VS289F) (EN)
